Installation





TIRE AND WHEEL: TIRE PRESSURE WARNING RECEIVER (w/ Antenna): INSTALLATION

1. INSTALL TIRE PRESSURE WARNING RECEIVER ASSEMBLY

(a) Connect the connector to the tire pressure warning receiver assembly.

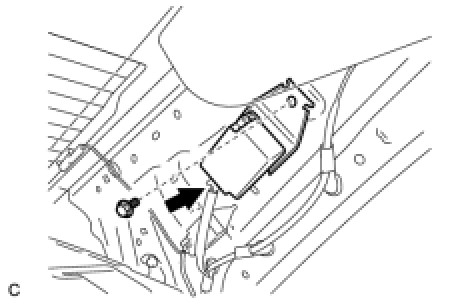

(b) Install the tire pressure warning receiver assembly with the bolt

Torque : 7.5 Nm (77 kgf-cm, 66 in-lbf)

2. INSTALL INNER ROOF SIDE GARNISH LH Installation

3. INSTALL REAR SEATBACK ASSEMBLY (for Fixed Seat Type) Installation

4. INSTALL REAR CENTER SEAT HEADREST ASSEMBLY (for Fixed Seat Type)

5. INSTALL REAR SEAT HEADREST ASSEMBLY (for Fixed Seat Type)

6. INSTALL REAR SEAT CUSHION ASSEMBLY (for Fixed Seat Type) Installation

7. INSTALL REAR SIDE SEATBACK ASSEMBLY LH (for Fold Down Seat Type) Installation

8. INSTALL REAR SEAT CUSHION ASSEMBLY (for Fold Down Seat Type) Installation

9. INSTALL REAR SEATBACK ASSEMBLY LH (for Reclining Seat Type) Installation

10. INSTALL REAR SEATBACK COVER (for Reclining Seat Type)

11. INSTALL REAR SEAT HEADREST ASSEMBLY (for Reclining Seat Type)

12. INSTALL BENCH TYPE REAR SEAT CUSHION ASSEMBLY (for Reclining Seat Type) Installation

13. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

14. INSPECT TIRE PRESSURE WARNING SYSTEM

HINT
Test Mode Procedure
