Installation





SEAT: REAR SEAT ASSEMBLY (for Reclining Seat Type): INSTALLATION

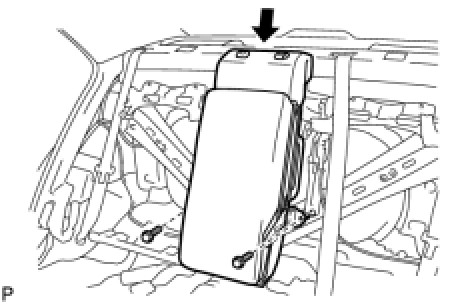

1. INSTALL CENTER SEAT BACK ASSEMBLY

(a) Install the center seat back assembly with the 2 bolts.





Torque : 18 Nm (184 kgf-cm, 13 ft-lbf)

2. INSTALL SEPARATE TYPE REAR SEAT BACK ASSEMBLY RH

(a) Install the separate type rear seat back assembly RH with the 2 bolts and 2 nuts.





Torque : 18 Nm (184 kgf-cm, 13 ft-lbf)

(b) Engage the 3 clamps and install the cover.





(c) Install the rear seat belt.





3. INSTALL SEPARATE TYPE REAR SEAT BACK ASSEMBLY LH

(a) Install the separate type rear seat back assembly LH with the 2bolts and 2 nuts.





Torque : 18 Nm (184 kgf-cm, 13 ft-lbf)

(b) Engage the 3 clamps and install the cover.





(c) Install the 2 rear seat belts.





4. INSTALL REAR SEAT BACK COVER

5. INSTALL REAR CENTER SEAT HEADREST ASSEMBLY

6. INSTALL REAR SEAT HEADREST ASSEMBLY

7. INSTALL REAR SEAT CUSHION ASSEMBLY

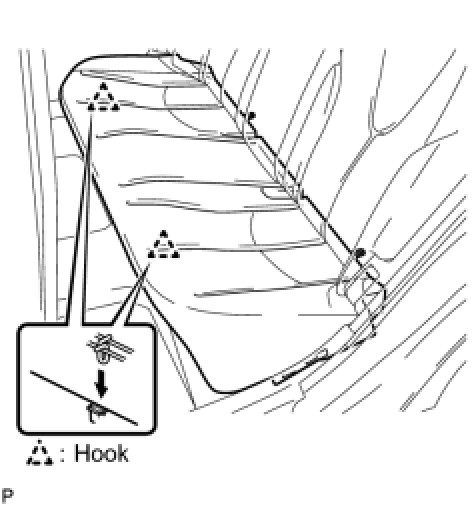

(a) Attach the front hooks of the bench type rear seat cushion assembly to the vehicle body.





(b) Confirm that the seat cushion is firmly installed.

NOTICE:
When installing the bench type rear seat cushion assembly, make sure that the seat belt buckle is not under the bench type rear seat cushion assembly.
