Installation

SEAT: REAR SEAT ASSEMBLY (for Fixed Type): INSTALLATION

1. INSTALL REAR SEAT BACK ASSEMBLY

(a) Place the seat back in the cabin.





NOTICE:
Be careful not to damage the vehicle body.

(b) Install the rear seat back assembly with the 4 bolts.

Torque : 18 Nm (184 kgf-cm, 13 ft-lbf)

(c) Pass the 3 seat belts through and close the cap of the 2 rear seat shoulder belt guides.





(d) Install the floor anchor part with the bolt.

2. INSTALL REAR CENTER SEAT HEADREST ASSEMBLY

3. INSTALL REAR SEAT HEADREST ASSEMBLY

4. INSTALL REAR SEAT CUSHION ASSEMBLY

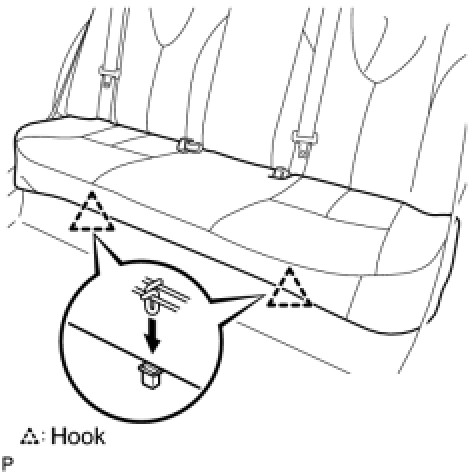

(a) Attach the 2 front hooks of the seat cushion to the vehicle body.





(b) Confirm that the seat cushion is firmly installed.

NOTICE:
When installing the seat cushion, make sure the seat belt buckle is not under the seat cushion.
