Installation





SEAT: REAR SEAT ASSEMBLY (for Fold Down Seat Type): INSTALLATION

1. INSTALL REAR SIDE SEAT BACK ASSEMBLY LH

(a) Install the rear side seat back assembly with the bolt.

Torque : 18 Nm (184 kgf-cm, 13 ft-lbf)





2. INSTALL REAR SIDE SEAT BACK ASSEMBLY RH

3. INSTALL SEPARATE TYPE REAR SEAT BACK ASSEMBLY LH

(a) Install the separate type rear seat back assembly with the 2 bolts.





Torque : 18 Nm (184 kgf-cm, 13 ft-lbf)

4. INSTALL SEPARATE TYPE REAR SEAT BACK ASSEMBLY RH

(a) Install the separate type rear seat back assembly with the 2 bolts.





Torque : 18 Nm (184 kgf-cm, 13 ft-lbf)

5. INSTALL REAR CENTER SEAT HEADREST ASSEMBLY

6. INSTALL REAR SEAT HEADREST ASSEMBLY

7. INSTALL REAR SEAT CUSHION ASSEMBLY

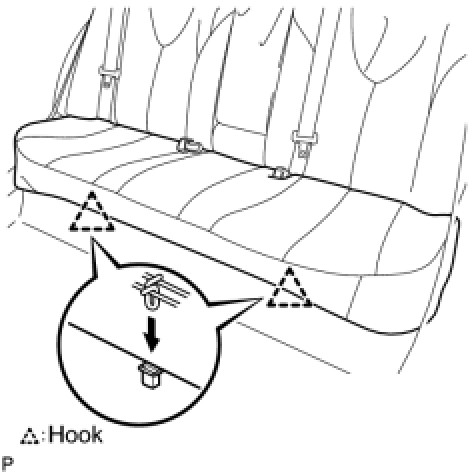

(a) Attach the front hooks of the bench type rear seat cushion assembly to the vehicle body.





(b) Confirm that the seat cushion is firmly installed.

NOTICE:
When installing the bench type rear seat cushion assembly, make sure that the seat belt buckle is not under the bench type rear seat cushion assembly.
