Installation

SUSPENSION: REAR SHOCK ABSORBER: INSTALLATION

1. INSTALL REAR SHOCK ABSORBER WITH COIL SPRING

(a) Install the rear shock absorber with coil spring to the rear axle carrier assembly and insert the 2 bolts from the rear of the vehicle.

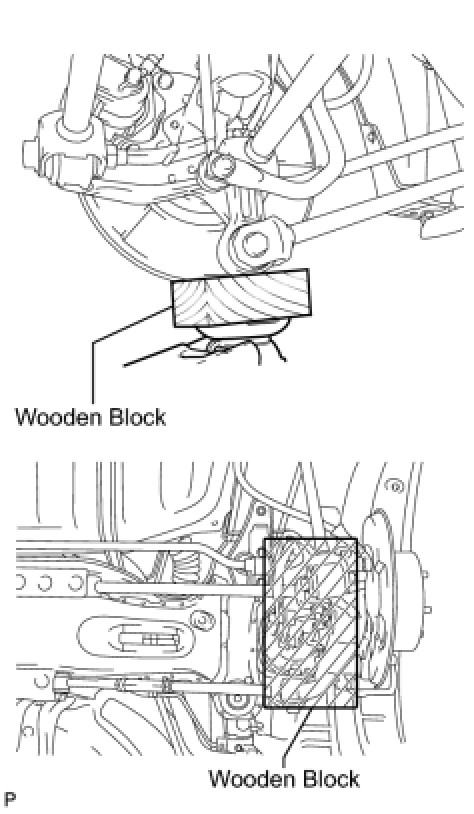

(b) Slowly jack up the vehicle using a wooden block and install the rear shock absorber with coil spring (upper side) to the vehicle.

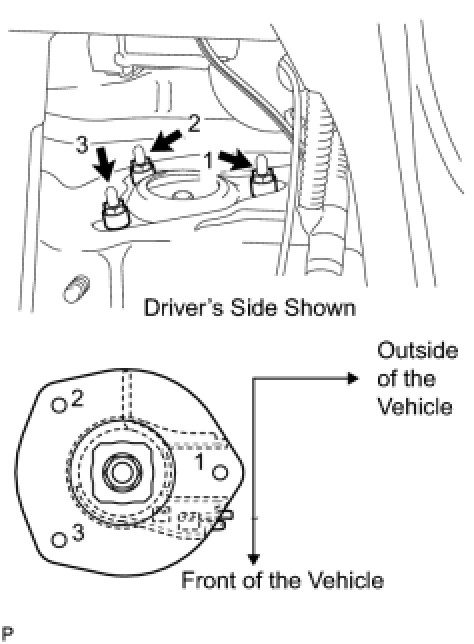

(d) Fully tighten the 3 nuts in order from 1 to 3.

Torque : 39 Nm (398 kgf-cm, 29 ft-lbf)

(e) Install the 2 nuts and 2 bolts to the lower side of the rear shock absorber with coil spring.

Torque : 180 Nm (1840 kgf-cm, 133 ft-lbf)

NOTICE:
When installing the nuts, keep the bolts from rotating.

(f) Fully tighten the lock nut.

Torque : 55 Nm (561 kgf-cm, 41 ft-lbf)

2. CONNECT REAR SPEED SENSOR

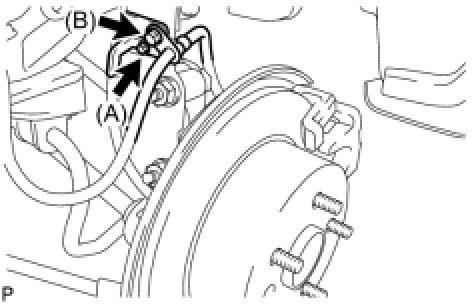

(a) Install the rear brake flexible hose and rear speed sensor wire harness with the 2 bolts.

Torque : 5.5 Nm (56 kgf-cm, 49 in-lbf) (bolt A)

Torque : 19 Nm (194 kgf-cm, 14 ft-lbf) (bolt B)

3. INSTALL REAR STABILIZER LINK ASSEMBLY LH

(a) Install the rear stabilizer link assembly LH to the rear shock absorber with the nut.

Torque : 39 Nm (398 kgf-cm, 29 ft-lbf)

HINT
If the ball joint turns together with the nut, use a hexagon wrench (5 mm) to hold the stud.

4. INSTALL REAR SUSPENSION SUPPORT NO. 1 COVER

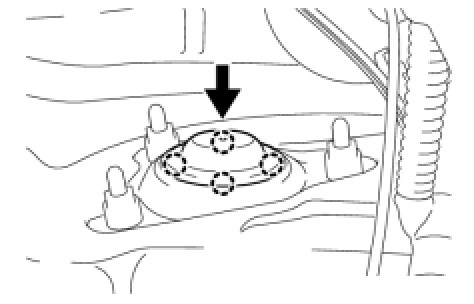

(a) Engage the 4 claws and install the rear suspension support No. 1 cover.

5. INSTALL REAR WHEEL

Torque : 103 Nm (1050 kgf-cm, 76 ft-lbf)

6. INSTALL REAR SEAT BACK ASSEMBLY (for Fixed Type) Installation

7. INSTALL REAR SEAT CUSHION ASSEMBLY (for Fixed Type) Installation

8. INSTALL REAR CENTER SEAT HEADREST ASSEMBLY (for Fixed Type)

9. INSTALL REAR SEAT HEADREST ASSEMBLY (for Fixed Type)

10. INSTALL REAR SIDE SEAT BACK ASSEMBLY RH (for Fold Down Seat Type) Installation

11. INSTALL REAR SIDE SEAT BACK ASSEMBLY LH (for Fold Down Seat Type) Installation

12. INSTALL SEPARATE TYPE REAR SEAT BACK ASSEMBLY RH (for Fold Down Seat Type) Installation

13. INSTALL SEPARATE TYPE REAR SEAT BACK ASSEMBLY LH (for Fold Down Seat Type) Installation

14. INSTALL REAR SEAT CUSHION ASSEMBLY (for Fold Down Seat Type) Installation

15. INSTALL REAR CENTER SEAT HEADREST ASSEMBLY (for Fold Down Seat Type)

16. INSTALL REAR SEAT HEADREST ASSEMBLY (for Fold Down Seat Type)

17. INSTALL SEPARATE TYPE REAR SEAT BACK ASSEMBLY RH (for Reclining Seat Type) Installation

18. INSTALL SEPARATE TYPE REAR SEAT BACK ASSEMBLY LH (for Reclining Seat Type) Installation

19. INSTALL REAR SEAT BACK COVER (for Reclining Seat Type)

20. INSTALL REAR SEAT CUSHION ASSEMBLY (for Reclining Seat Type) Installation

21. INSTALL REAR SEAT HEADREST ASSEMBLY (for Reclining Seat Type)

22. CHECK ABS SPEED SENSOR SIGNAL

for BOSCH Made: Test Mode Procedure

for ADVICS Made: Test Mode Procedure

23. INSPECT AND ADJUST REAR WHEEL ALIGNMENT

Rear Wheel Alignment
