Installation





SEAT BELT: CHILD RESTRAINT SEAT ANCHOR BRACKET: INSTALLATION

1. INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY

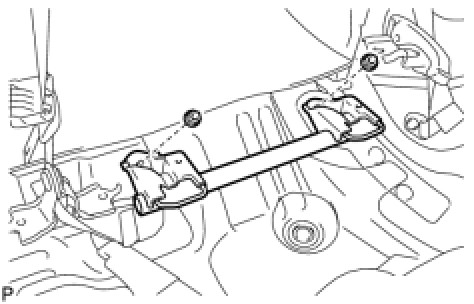

(a) Install the child restraint seat anchor bracket sub-assembly with the 2 nuts.





Torque : 18 Nm (184 kgf-cm, 13 ft-lbf)

2. INSTALL SEPARATE TYPE REAR SEAT BACK ASSEMBLY (for Reclining Seat Type) Installation

3. INSTALL REAR SEAT BACK COVER (for Reclining Seat Type)

4. INSTALL SEPARATE TYPE REAR SEAT BACK ASSEMBLY (for Fold Down Seat Type) Installation

5. INSTALL REAR SEAT BACK ASSEMBLY (for Fixed Seat Type) Installation

6. INSTALL REAR CENTER SEAT HEADREST ASSEMBLY (for Fixed Seat Type)

7. INSTALL REAR SEAT HEADREST ASSEMBLY

8. INSTALL REAR SEAT CUSHION ASSEMBLY Installation
