Removal

LIGHTING: HEADLIGHT DIMMER SWITCH: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

2. PLACE FRONT WHEELS FACING STRAIGHT AHEAD

3. REMOVE NO. 2 LOWER STEERING WHEEL COVER Removal

4. REMOVE NO. 3 LOWER STEERING WHEEL COVER Removal

5. REMOVE STEERING PAD Removal

6. REMOVE STEERING WHEEL ASSEMBLY Removal

7. REMOVE STEERING COLUMN COVER Removal

8. REMOVE SPIRAL CABLE WITH STEERING ANGLE SENSOR Removal

9. REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY Removal

10. REMOVE HEADLIGHT DIMMER SWITCH ASSEMBLY

(a) Disconnect the connector.

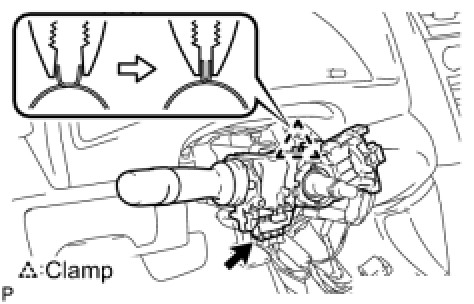

(b) Disengage the clamp as shown in the illustration.

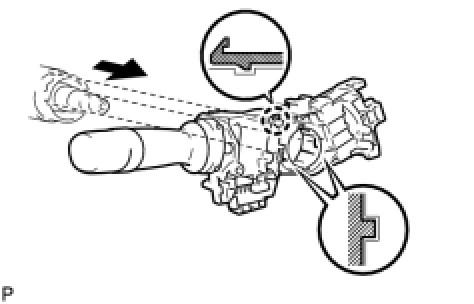

(c) Disengage the claw and remove the headlight dimmer switch assembly as shown in the illustration.
