Removal

SUPPLEMENTAL RESTRAINT SYSTEM: SPIRAL CABLE: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:
Wait for 90 seconds after disconnecting the cable to prevent airbag deployment.

2. PLACE FRONT WHEELS FACING STRAIGHT AHEAD

3. REMOVE NO. 3 LOWER STEERING WHEEL COVER Removal

4. REMOVE NO. 2 LOWER STEERING WHEEL COVER Removal

5. REMOVE STEERING PAD Removal

6. REMOVE STEERING WHEEL ASSEMBLY Removal

7. REMOVE STEERING COLUMN COVER Removal

8. REMOVE SPIRAL CABLE WITH STEERING ANGLE SENSOR

(a) Disconnect the connectors from the spiral cable with steering angle sensor.





NOTICE:
When handling the airbag connector, take care not to damage the airbag wire harness.

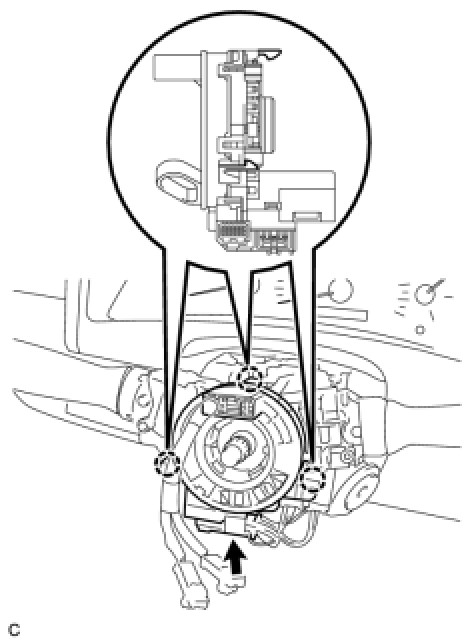

(b) Disengage the 3 claws and remove the spiral cable with steering angle sensor.

9. REMOVE SPIRAL CABLE

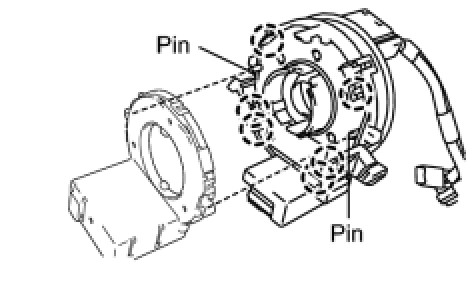

(a) Disengage the 6 claws and remove the spiral cable from the steering angle sensor.
