Installation





DOOR LOCK: ENTRY LOCK AND UNLOCK SWITCH: INSTALLATION

1. INSTALL FRONT DOOR OUTSIDE HANDLE SUB-ASSEMBLY

(a) Insert the front end of the front door outside handle assembly into the front door outside handle frame.

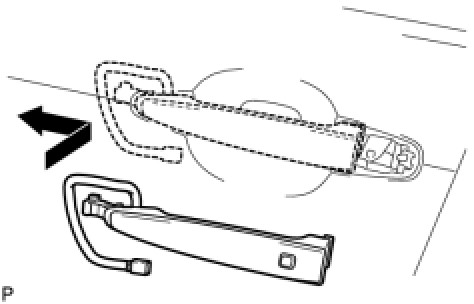

(b) Insert the rear end of the front door outside handle assembly into the front door outside handle frame. Slide the front door outside handle assembly to the front of the vehicle to install it.





(c) Connect the connector.

2. INSTALL FRONT DOOR OUTSIDE HANDLE COVER Reassembly

3. INSTALL FRONT DOOR GLASS SUB-ASSEMBLY Reassembly

4. INSTALL FRONT DOOR SERVICE HOLE COVER Reassembly

5. INSTALL FRONT NO. 1 SPEAKER ASSEMBLY Installation

6. INSTALL FRONT DOOR INNER GLASS WEATHERSTRIP Reassembly

7. INSTALL FRONT DOOR INSIDE HANDLE SUB-ASSEMBLY Reassembly

8. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY Reassembly

9. INSTALL COURTESY LIGHT ASSEMBLY Reassembly

10. INSTALL ASSIST GRIP COVER Reassembly

11. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG Reassembly

12. INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH Reassembly
