Installation

AUDIO / VISUAL: FRONT SIDE SPEAKER: INSTALLATION

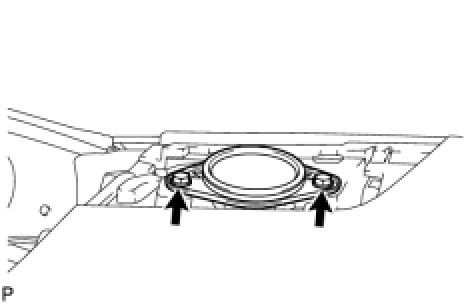

1. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY

(a) Connect the connector.

(b) Install the front No. 2 speaker assembly with the 2 bolts.





2. INSTALL INSTRUMENT PANEL NO. 2 SPEAKER PANEL SUB-ASSEMBLY

(a) Engage the 6 claws and 2 clips and install the instrument panel No. 2 speaker panel sub-assembly.





3. INSTALL FRONT PILLAR GARNISH Installation

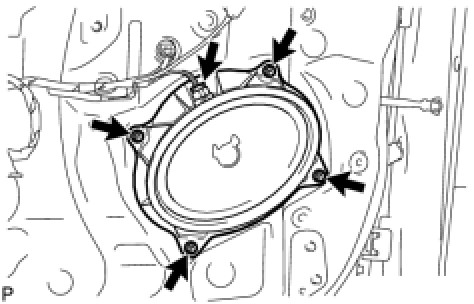

4. INSTALL FRONT NO. 1 SPEAKER ASSEMBLY

(a) Install the front No. 1 speaker assembly with the 4 bolts.





(b) Connect the connector.

5. INSTALL FRONT DOOR INNER GLASS WEATHERSTRIP Reassembly

6. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY Reassembly

7. INSTALL COURTESY LIGHT ASSEMBLY Reassembly

8. INSTALL ASSIST GRIP COVER Reassembly

9. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG Reassembly

10. INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH Reassembly
