BRAKE CONTROL: STEERING ANGLE SENSOR (w/ VSC): REMOVAL

1. PRECAUTION (for TMC Made)

CAUTION:
Be sure to read "PRECAUTION" thoroughly before servicing Airbag System (for TMC Made).

2. PRECAUTION (except TMC Made)

CAUTION:
Be sure to read "PRECAUTION" thoroughly before servicing Airbag System (except TMC Made).

3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait for 90 seconds after disconnecting the cable to prevent airbag deployment.

4. PLACE FRONT WHEELS FACING STRAIGHT AHEAD

NOTICE:
When reconnecting the cable to the negative battery terminal after installing the steering sensor, check that the front tires and steering wheel are kept aligned straight ahead before and after connecting the cable to the negative battery terminal.

5. REMOVE NO. 2 STEERING WHEEL COVER LOWER Removal

6. REMOVE NO. 3 STEERING WHEEL COVER LOWER Removal

7. REMOVE STEERING PAD Removal

8. REMOVE STEERING WHEEL ASSEMBLY Removal

9. REMOVE STEERING COLUMN COVER Removal

10. REMOVE SPIRAL CABLE SUB-ASSEMBLY WITH STEERING ANGLE SENSOR Removal

11. REMOVE STEERING ANGLE SENSOR

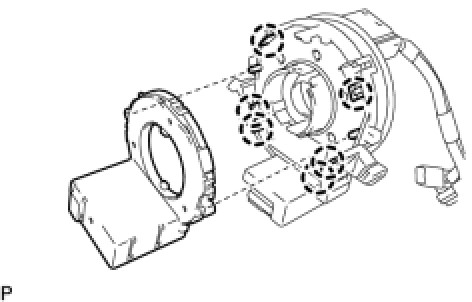

(a) Disengage the claws and remove the steering angle sensor from the spiral cable.
