Installation





LIGHTING: FOG LIGHT ASSEMBLY: INSTALLATION

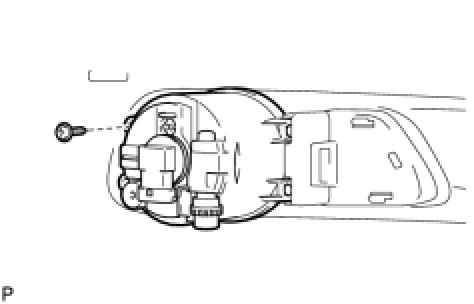

1. INSTALL FOG LIGHT ASSEMBLY

(a) Install the fog light assembly with the screw.





Torque : 1.6 Nm (16 kgf-cm, 14 in-lbf)

2. INSTALL FRONT BUMPER ASSEMBLY Installation

3. INSTALL COOL AIR INTAKE DUCT SEAL (for 2GR-FE) Installation

4. VEHICLE PREPARATION FOR FOG LIGHT AIM ADJUSTMENT Adjustments

5. PREPARATION FOR FOG LIGHT AIMING Adjustments

6. FOG LIGHT AIMING INSPECTION Adjustments

7. FOG LIGHT AIMING ADJUSTMENT Adjustments
