Reassembly

ENGINE HOOD / DOOR: LUGGAGE COMPARTMENT DOOR: REASSEMBLY

1. INSTALL LICENSE PLATE LIGHT ASSEMBLY LH Installation

2. INSTALL LICENSE PLATE LIGHT ASSEMBLY RH

HINT
Use the same procedure for the RH side and LH side.

3. INSTALL REAR LIGHT ASSEMBLY LH Installation

4. INSTALL REAR LIGHT ASSEMBLY RH

HINT
Use the same procedure for the RH side and LH side.

5. INSTALL REAR TELEVISION CAMERA ASSEMBLY (w/ Rear View Monitor System)

w/o Smart Key System: Installation

w/ Smart Key System: Installation

6. INSTALL LUGGAGE DOOR OPENING SWITCH ASSEMBLY (w/ Smart Key System)

w/o Rear View Monitor System: Installation

w/ Rear View Monitor System: Installation

7. INSTALL LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH ASSEMBLY

8. INSTALL REAR SPOILER (for SE Grade) Installation

9. INSTALL LUGGAGE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY

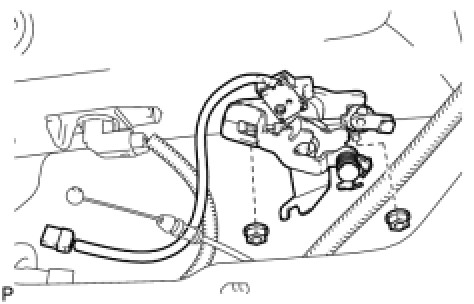

(a) Install the luggage compartment door lock cylinder with the 2 nuts.





Torque : 5.5 Nm (56 kgf-cm, 49 in-lbf)

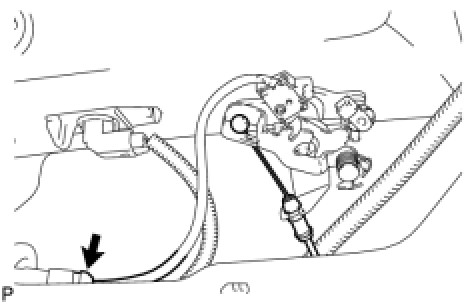

(b) Connect the cable and connector.





10. INSTALL LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY Installation

11. INSTALL LUGGAGE COMPARTMENT DOOR COVER
