EXTERIOR: REAR SPOILER: INSTALLATION

1. INSTALL REAR SPOILER

HINT
When installing the spoiler, heat the vehicle body and spoiler using a heat light.

Heating temperature:

NOTICE:
Do not heat the vehicle body and rear spoiler excessively.

(a) Clean the vehicle body surface.

(1) Using a heat light, heat the vehicle body surface.

(2) Remove the double-sided tape from the vehicle body.

(3) Wipe off any tape adhesive residue with cleaner.

(b) Clean the rear spoiler. (If reusing the rear spoiler)

(1) Using a heat light, heat the rear spoiler.

(2) Remove the double-sided tape from the rear spoiler.

(3) Wipe off any tape adhesive residue with cleaner.

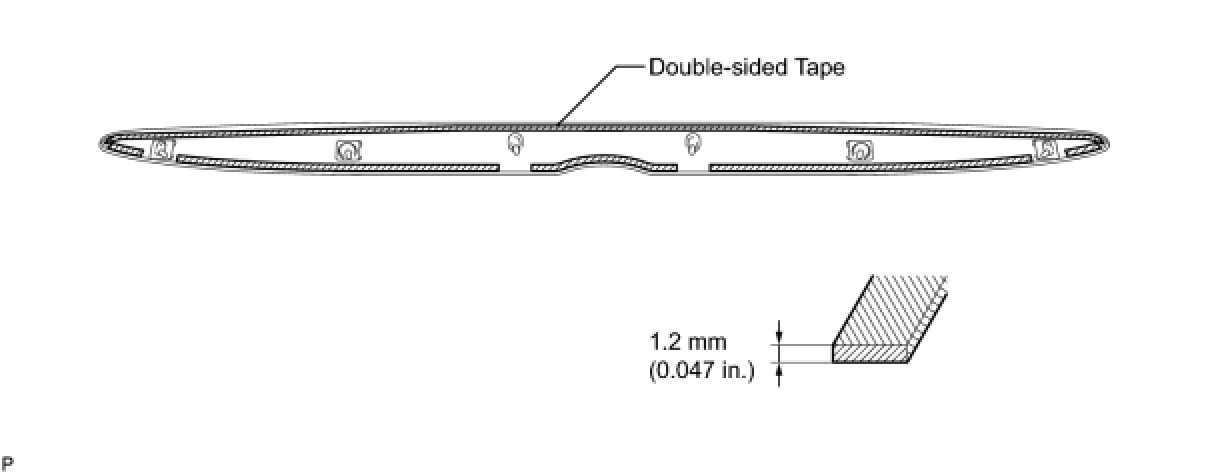

(4) Apply new double-sided tape to the rear spoiler.

(1) Using a heat light, heat the vehicle body and rear spoiler.

(2) Remove the release paper from the rear spoiler.

HINT
After removing the release paper, keep the exposed adhesive free from foreign matter.

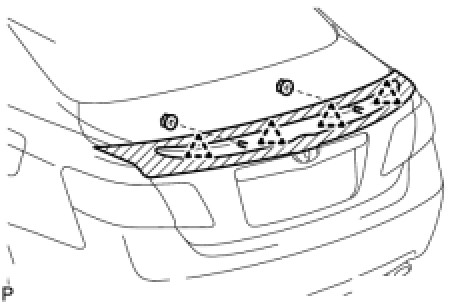

(3) Engage the 4 clips and install the rear spoiler with the 2 nuts.

2. INSTALL LUGGAGE COMPARTMENT DOOR COVER
