Windshield Washer Spray Nozzle: Testing and Inspection
WIPER AND WASHER: WASHER NOZZLE: ON-VEHICLE INSPECTION 1.
INSPECT WASHER NOZZLE SUB-ASSEMBLY
(a)
With the engine running, check the position that the washer fluid hits the windshield.

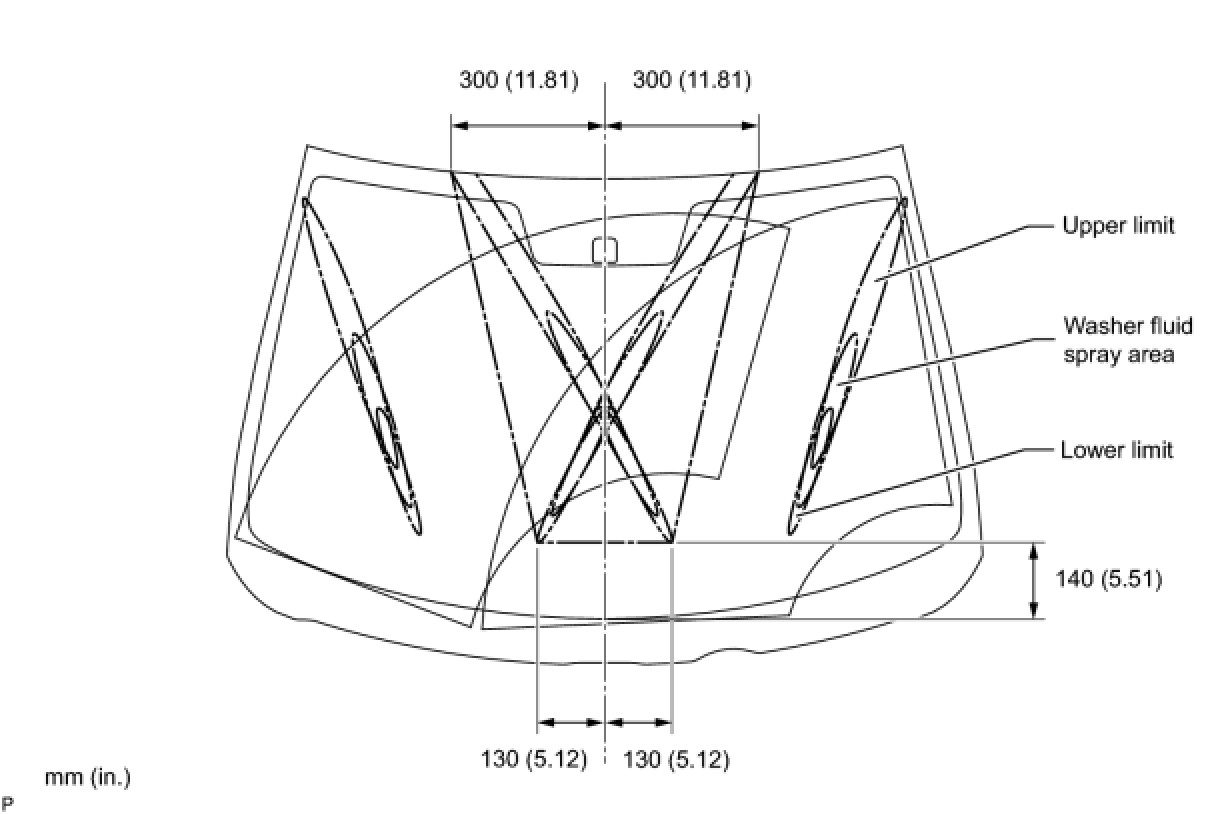

Standard: Washer fluid hits the windshield in the areas shown in the illustration. HINT If the result is not as specified, replace the washer nozzle.
