Installation

LIGHTING: GLOVE BOX LIGHT: INSTALLATION

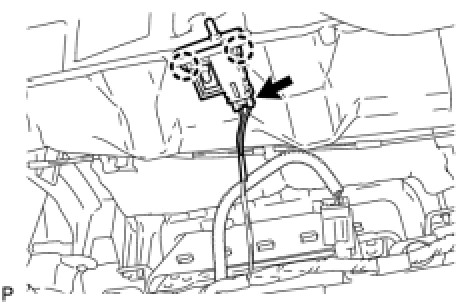

1. INSTALL GLOVE BOX LIGHT ASSEMBLY

(a) Engage the 2 claws and install the glove box light assembly.





(b) Connect the connector.

2. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY (for TMC Made) Installation

3. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY (for TMMK Made) Installation

4. INSTALL INSTRUMENT PANEL NO. 2 UNDER COVER SUB-ASSEMBLY Installation

5. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH Installation

6. INSTALL FRONT DOOR SCUFF PLATE RH Installation
