On-Vehicle Inspection
OTHER SYSTEM: CLOCK: ON-VEHICLE INSPECTION 1.
INSPECT CLOCK ASSEMBLY
(a)

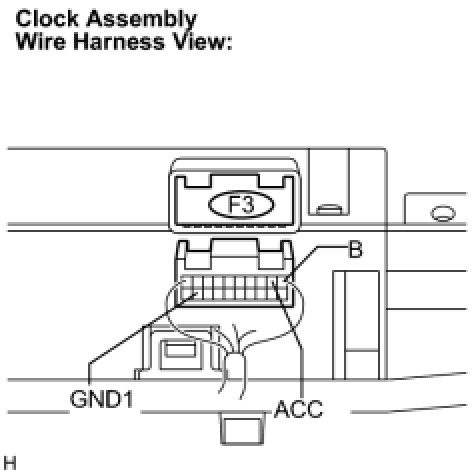

Disconnect the F3 connector.
(b)
Measure the voltage according to the value(s) in the table below.
Standard voltage: (c)
Measure the resistance according to the value(s) in the table below.
Standard resistance: HINT If the value is not as specified, repair or replace the wire harness or connector.
