Installation

DOOR LOCK: REAR DOOR LOCK: INSTALLATION

1. INSTALL REAR DOOR LOCK ASSEMBLY

NOTICE:
* When reusing the removed rear door lock assembly, replace the door lock wiring harness seal on the door lock with a new one.
* Do not allow grease or dust to adhere to the surface of the door lock where the seal attaches.
* Reusing the door lock wiring harness seal or using a damaged door lock wiring harness seal may allow water intrusion to the connection, and result in a malfunction in the rear door lock assembly.

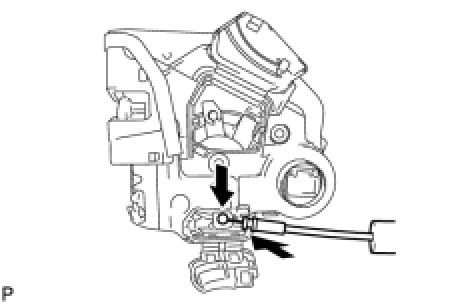

(a) Install the rear door inside locking cable assembly.

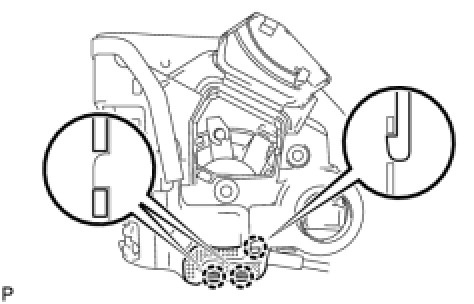

(b) Engage the 3 claws.

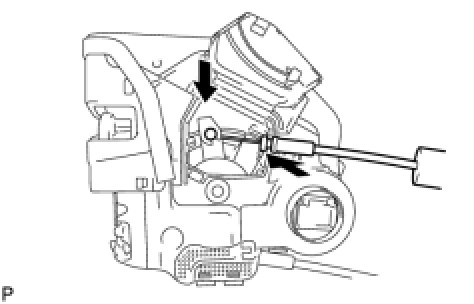

(d) Engage the claw.

(e) Apply MP grease to the sliding parts on the rear door lock assembly.

(f) Install a new door lock wiring harness seal to the rear door lock assembly.

(g) Insert the rear door lock assembly to the rear door outside handle release plate, and set the assembly to the rear door panel.

(h) Make sure that the rear door outside handle frame release plate is securely connected to the rear door lock assembly.

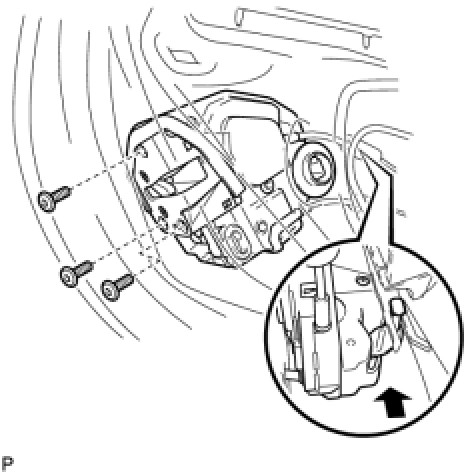

(i) Using a "torx" socket wrench (T30), install the rear door lock assembly with the 3 screws.

Torque : 5.0 Nm (51 kgf-cm, 44 in-lbf)

(j) Connect the connector.

2. INSTALL REAR DOOR SERVICE HOLE COVER Reassembly

3. INSTALL REAR DOOR INNER GLASS WEATHERSTRIP Reassembly

4. INSTALL REAR DOOR INSIDE HANDLE SUB-ASSEMBLY Reassembly

5. INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY Reassembly

6. INSTALL DOOR ASSIST GRIP COVER Reassembly

7. INSTALL REAR DOOR INSIDE HANDLE BEZEL PLUG Reassembly
