Removal

EXTERIOR: REAR SPOILER: REMOVAL

1. REMOVE LUGGAGE COMPARTMENT DOOR COVER

2. REMOVE REAR SPOILER

HINT
When removing the rear spoiler, heat the vehicle body and rear spoiler using a heat light.

Heating temperature:





NOTICE:
Do not heat the vehicle body and spoiler excessively.

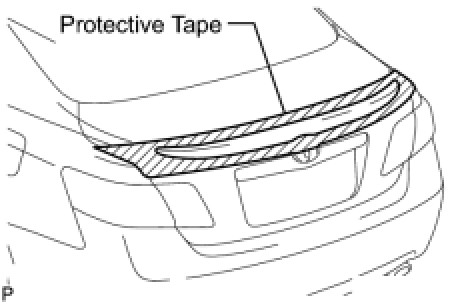

(a) Put protective tape around the rear spoiler.

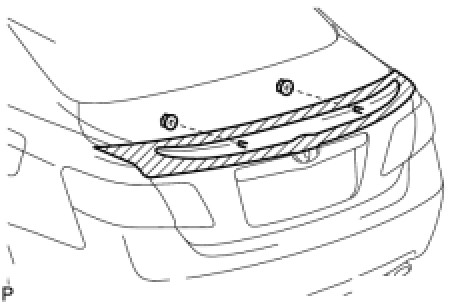

(b) Remove the 2 nuts.

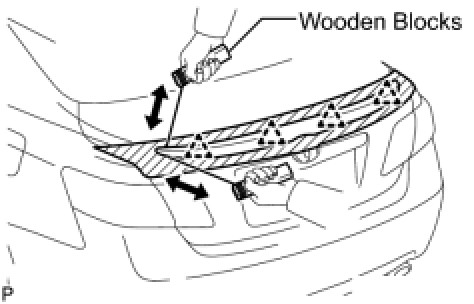

(c) Insert a piano wire between the vehicle body and rear spoiler.





(d) Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.

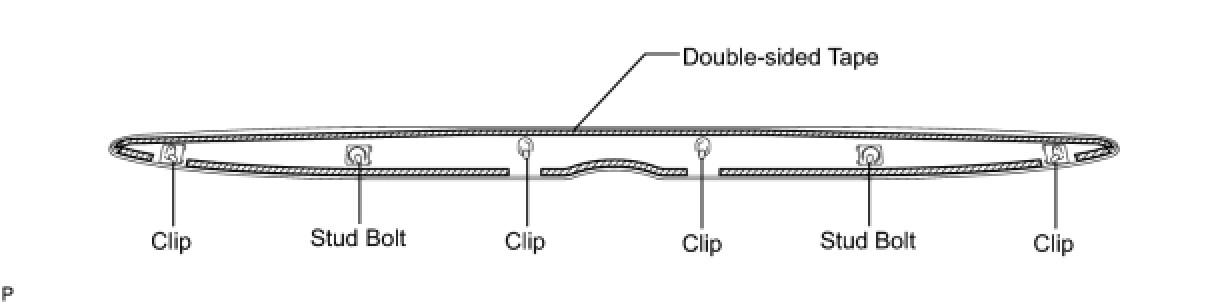

(e) Pull the piano wire and scrape off the double-sided tape that holds the spoiler to the vehicle body.





NOTICE:
* If reusing the spoiler, take care not to damage the spoiler.
* Be careful not to damage the vehicle body.

(f) Disengage the 4 clips and remove the rear spoiler.
