Reassembly

ENGINE HOOD / DOOR: FRONT DOOR TRIM BOARD: REASSEMBLY


1. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY

(a) Connect each connector.

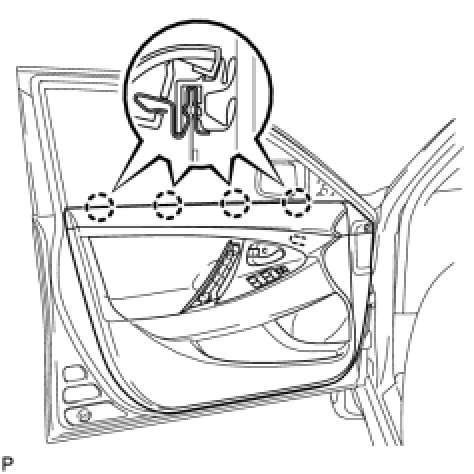

(b) Engage the front door trim board with the 4 clips of the front door inner glass weatherstrip.

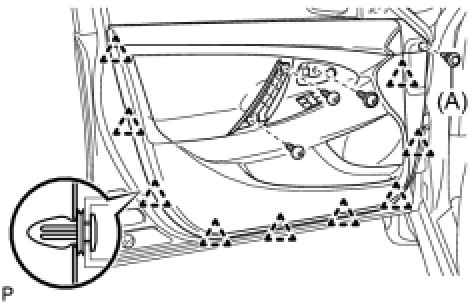

(c) Engage the 9 clips and install the front door trim board to the front door panel.





(d) Install the 3 screws and clip (A).

2. INSTALL COURTESY LIGHT ASSEMBLY

(a) Connect the connector.

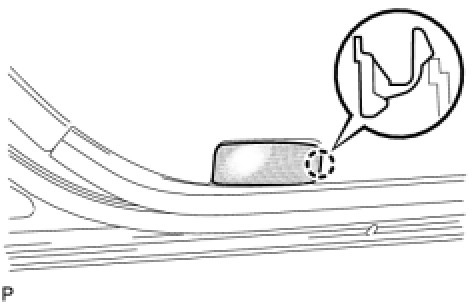

(b) Engage the claw and install the courtesy light assembly.





3. INSTALL ASSIST GRIP COVER

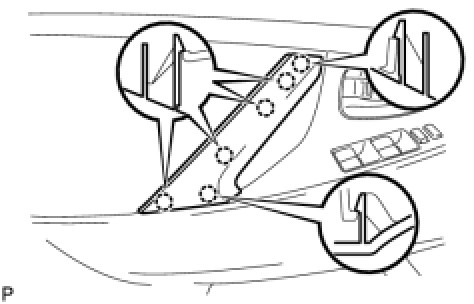

(a) Engage the 6 claws and install the assist grip cover.





4. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG

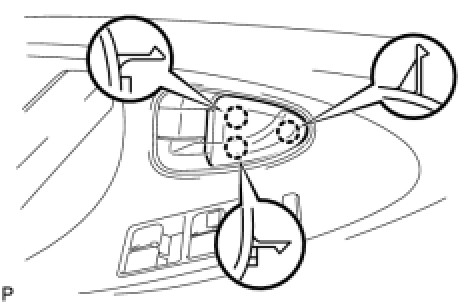

(a) Engage the 3 claws and install the front door inside handle bezel plug.





5. INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH

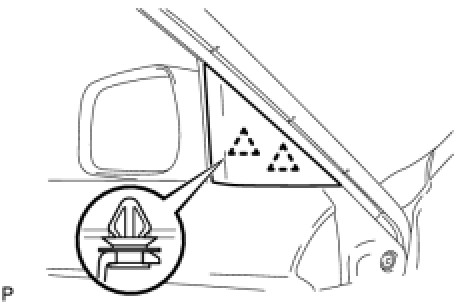

(a) Engage the 2 clips and install the front door lower frame bracket garnish.





6. INITIALIZE POWER WINDOW CONTROL SYSTEM

Programming and Relearning
