Installation

EXTERIOR: REAR BUMPER: INSTALLATION

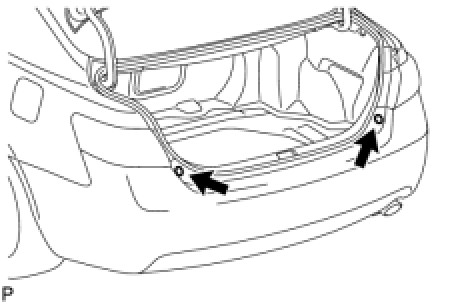

1. INSTALL REAR BUMPER ASSEMBLY (w/o Rear Lower Spoiler)

(a) Engage each claw.





(b) Install the rear bumper assembly with the 6 screws and 2 clips.

(c) Install the 2 rear bumper plates.

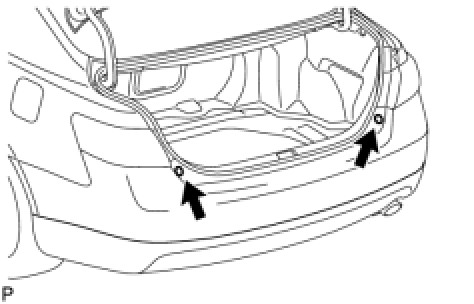

2. INSTALL REAR BUMPER ASSEMBLY (w/ Rear Lower Spoiler)

(a) Engage each claw.





(b) Install the rear bumper assembly with the 6 screws.

(c) Install the 2 rear bumper plates.





3. INSTALL REAR FLOOR BOARD (w/ Rear Lower Spoiler)

(a) Install the rear floor board with the 3 nuts, 2 clips and 4 screws.
