Installation

AUDIO / VISUAL: STEREO COMPONENT AMPLIFIER: INSTALLATION

1. INSTALL STEREO COMPONENT AMPLIFIER ASSEMBLY

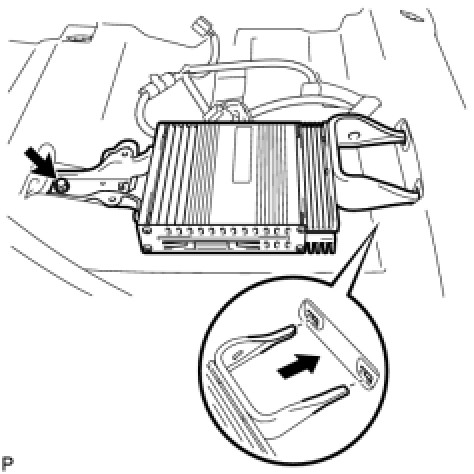

(a) Install the stereo component amplifier assembly as shown in the illustration.

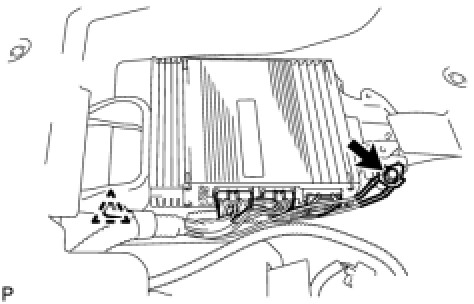

(b) Install the bolt and connect each connector.





(c) Engage the clip.

(d) Install the bolt.

2. INSTALL AUDIO AMPLIFIER COVER

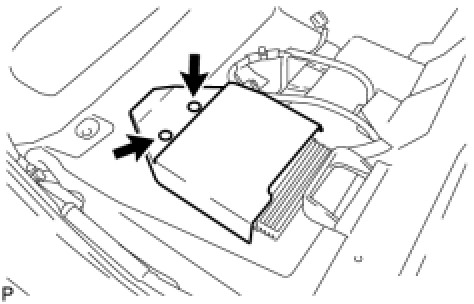

(a) Install the audio amplifier cover with the 2 clips.





3. INSTALL FRONT SEAT ASSEMBLY RH (for Manual Seat)

HINT
Use the same procedures for the RH side and the LH side Installation.

4. INSTALL INNER SEAT TRACK BRACKET COVER RH (for Manual Seat)

HINT
Use the same procedures for the RH side and the LH side Installation.

5. INSTALL SEAT TRACK COVER RH (for Manual Seat)

HINT
Use the same procedures for the RH side and the LH side Installation.

6. INSTALL FRONT SEAT ASSEMBLY RH (for Power Seat)

HINT
Use the same procedures for the RH side and the LH side Installation.

7. INSTALL INNER SEAT TRACK BRACKET COVER RH (for Power Seat)

HINT
Use the same procedures for the RH side and the LH side Installation.

8. INSTALL SEAT TRACK COVER RH (for Power Seat)

HINT
Use the same procedures for the RH side and the LH side Installation.

9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (for Manual Seat)

10. INSPECT SLIDE ADJUSTER LOCK (for Manual Seat)

11. INSPECT FRONT SEAT ASSEMBLY (for Power Seat)

12. PERFORM ZERO POINT CALIBRATION AND SENSITIVITY CHECK

Programming and Relearning

13. INSPECT SRS WARNING LIGHT

* for TMC Made: Diagnosis System

* except TMC Made: Diagnosis System
