Transaxle Unit

EB62 MANUAL TRANSAXLE: MANUAL TRANSAXLE UNIT: INSPECTION

1. INSPECT REVERSE IDLER GEAR SUB-ASSEMBLY

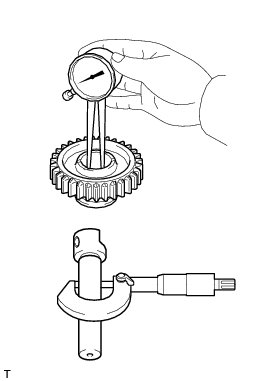

(a) Using a caliper gauge, measure the inside diameter of the reverse idler gear.





Standard inside diameter:

20.056 to 20.074 mm (0.7896 to 0.7903 in.)

Maximum inside diameter:

20.074 mm (0.7903 in.)

If the inside diameter is more than the maximum, replace the reverse idler gear sub-assembly.

(b) Using a micrometer, measure the outer diameter of the reverse idler gear shaft.

Standard outer diameter:

19.984 to 20.000 mm (0.78677 to 0.78740 in.)

Minimum outer diameter:

19.984 mm (0.78677 in.)

If the outer diameter is less than the minimum, replace the reverse idler gear shaft.
