Removal





SUPPLEMENTAL RESTRAINT SYSTEM: SIDE AIRBAG SENSOR: REMOVAL

HINT
* Use the same procedures for the RH side and LH side.
* The procedures listed below are for the LH side.

1. PRECAUTION

CAUTION:
Be sure to read "PRECAUTION" thoroughly before servicing Airbag System (for TMC Made) for TMC made, Airbag System (except TMC Made) except TMC made).

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:
Wait for 90 seconds after disconnecting the cable to prevent airbag deployment.

3. REMOVE FRONT DOOR SCUFF PLATE Removal

4. REMOVE REAR DOOR SCUFF PLATE Removal

5. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP

6. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP

7. REMOVE LOWER CENTER PILLAR GARNISH Removal

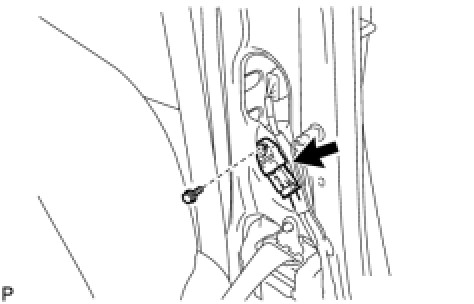

8. REMOVE SIDE AIRBAG SENSOR

(a) Remove the bolt and side airbag sensor from the body.





(b) Disconnect the connector from the side airbag sensor.
