Front Seat Side Airbag Assembly (for Power Seat)





SUPPLEMENTAL RESTRAINT SYSTEM: FRONT SEAT SIDE AIRBAG ASSEMBLY (for Power Seat): ON-VEHICLE INSPECTION

1. FRONT SEAT SIDE AIRBAG ASSEMBLY (VEHICLE NOT INVOLVED IN COLLISION)

(a) Perform a diagnostic system check Airbag System (for TMC Made) for TMC made, Airbag System (except TMC Made) except TMC made).

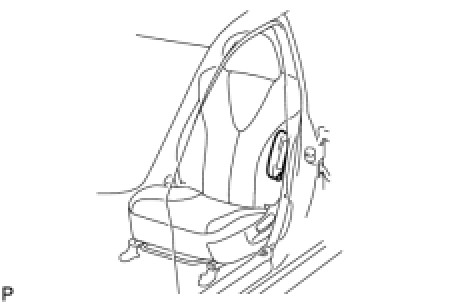

(b) With the front seat side airbag assembly installed on the vehicle, perform a visual check. If there are any defects as mentioned below, replace the front seat side airbag assembly with a new one:





* Cuts, minute cracks or marked discoloration on the front seatback assembly around the front seat side airbag assembly.

2. FRONT SEAT SIDE AIRBAG ASSEMBLY (VEHICLE INVOLVED IN COLLISION AND AIRBAG HAS NOT DEPLOYED)

(a) Perform a diagnostic system check Airbag System (for TMC Made) for TMC made, Airbag System (except TMC Made) except TMC made).

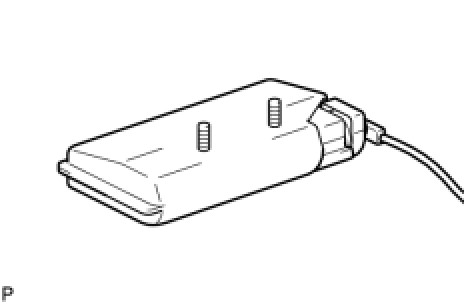

(b) With the front seat side airbag assembly removed from the vehicle, perform a visual check. If there are any defects as mentioned below, replace the front seat side airbag assembly with a new one:





* Cuts, minute cracks or marked discoloration on the front seat side airbag assembly.

* Cracks or other damage to the wire harness or connector.

CAUTION:
Be sure to follow the correct removal and installation procedures.
