Front Passenger Airbag Assembly

SUPPLEMENTAL RESTRAINT SYSTEM: FRONT PASSENGER AIRBAG ASSEMBLY: ON-VEHICLE INSPECTION

1. INSPECT FRONT PASSENGER AIRBAG ASSEMBLY (VEHICLE NOT INVOLVED IN COLLISION)

(a) Perform a diagnostic system check Airbag System (for TMC Made) for TMC made, Airbag System (except TMC Made) except TMC made).

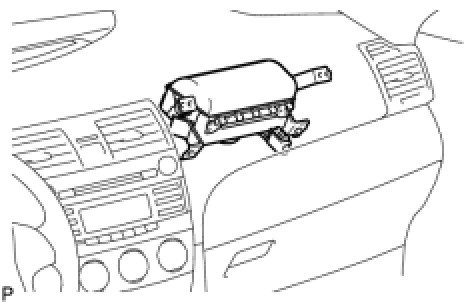

(b) With the front passenger airbag assembly installed on the vehicle, perform a visual check. If there are any defects as mentioned below, replace the instrument panel with a new one:





* Cuts, minute cracks or marked discoloration on the instrument panel around the front passenger airbag assembly.

2. INSPECT FRONT PASSENGER AIRBAG ASSEMBLY (VEHICLE INVOLVED IN COLLISION AND AIRBAG HAS NOT DEPLOYED)

(a) Perform a diagnostic system check Airbag System (for TMC Made) for TMC made, Airbag System (except TMC Made) except TMC made).

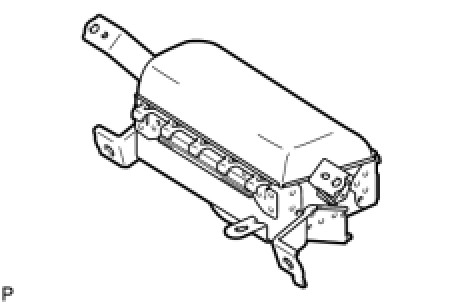

(b) With the front passenger airbag assembly removed from the vehicle, perform a visual check. If there are any defects as mentioned below, replace the front passenger airbag assembly, instrument panel or instrument panel reinforcement with a new one:





* Cuts, minute cracks or marked discoloration on the front passenger airbag assembly.

* Cracks or other damage to the connectors.

* Deformation or cracks on the instrument panel or instrument panel reinforcement.

CAUTION:
Be sure to follow the correct removal and installation procedures.
