Component Tests and General Diagnostics

CLUTCH: CLUTCH UNIT: INSPECTION

1. INSPECT CLUTCH DISC ASSEMBLY





(a) Using a vernier caliper, measure the rivet head depth.

Minimum rivet depth:

0.3 mm (0.0118 in.)

If necessary, replace the clutch disc assembly.

(b) Install the clutch disc assembly onto the transaxle assembly.

HINT
Insert the clutch disc assembly in the correct direction.

(c) Using a dial gauge, measure the clutch disc assembly runout.





Maximum runout:

0.8 mm (0.0314 in.)

If necessary, replace the clutch disc assembly.

2. INSPECT CLUTCH COVER ASSEMBLY

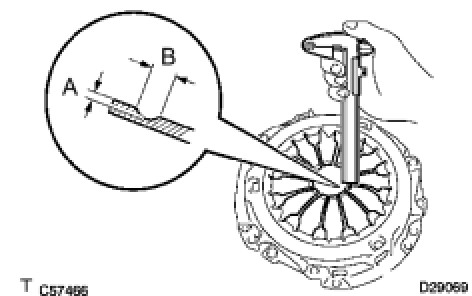

(a) Using a vernier caliper, measure the depth and width of the diaphragm spring wear.

Maximum:

A (Depth): 0.5 mm (0.0196 in.)

B (Width): 6.0 mm (0.236 in.)

If necessary, replace the clutch cover assembly.

3. INSPECT FLYWHEEL SUB-ASSEMBLY





(a) Using a dial indicator, check the flywheel sub-assembly runout.

Maximum runout:

0.1 mm (0.00393 in.)

If necessary, replace the flywheel sub-assembly.
