Reassembly





AIR CONDITIONING: BLOWER UNIT: REASSEMBLY

1. INSTALL BLOWER WITH FAN MOTOR SUB-ASSEMBLY (for TMC Made)

(a) Install the blower with fan motor sub-assembly with the 3 screws.





2. INSTALL AIR INLET SERVO MOTOR (for TMC Made)

(a) Install the air inlet servo motor with the 3 screws.





3. INSTALL CLEAN AIR FILTER (for TMC Made)

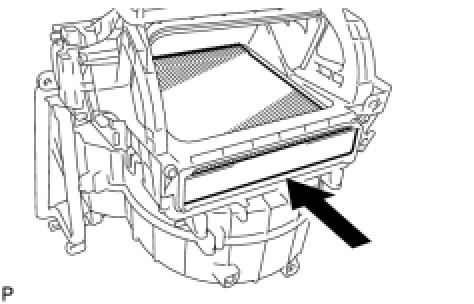

(a) Install the clean air filter as shown in the illustration.





4. INSTALL AIR FILTER COVER PLATE (for TMC Made)

(a) Engage the 2 claws to install the air filter cover plate.





5. INSTALL AIR DUCT SUB-ASSEMBLY (for TMC Made)

(a) Engage the 4 claws to install the air duct sub-assembly.





6. INSTALL BLOWER WITH FAN MOTOR SUB-ASSEMBLY (for TMMK Made)

(a) Install the blower with fan motor sub-assembly with the 3 screws.





7. INSTALL AIR INLET SERVO MOTOR (for TMMK Made)

(a) Install the air inlet servo motor with the 3 screws.





8. INSTALL CLEAN AIR FILTER (for TMMK Made)

(a) Install the clean air filter as shown in the illustration.





9. INSTALL AIR FILTER COVER PLATE (for TMMK Made)

(a) Engage the 2 claws to install the air filter cover plate.





10. INSTALL AIR DUCT SUB-ASSEMBLY (for TMMK Made)

(a) Engage the 4 claws to install the air duct sub-assembly.
