Installation

SUSPENSION: REAR NO. 2 SUSPENSION ARM: INSTALLATION

1. TEMPORARILY TIGHTEN REAR NO. 2 SUSPENSION ARM

(a) Install the rear No. 2 suspension arm (inner side) with the bolt, and temporarily tighten the bolt.





HINT

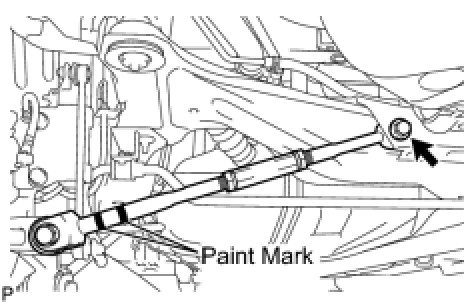

Ensure that the paint mark faces to the rear of the vehicle.

(b) Connect the rear No. 2 suspension arm (outer side) to the rear axle carrier with the bolt and nut, and temporarily tighten the bolt.





NOTICE:
When temporarily tightening the bolt, keep the nut from rotating.

2. STABILIZE SUSPENSION Installation

3. FULLY TIGHTEN REAR NO. 2 SUSPENSION ARM

(a) Fully tighten the bolt.





Torque : 100 Nm (1,020 kgf-cm, 74 ft-lbf)

(b) Fully tighten the bolt.





Torque : 100 Nm (1,020 kgf-cm, 74 ft-lbf)

4. INSTALL REAR WHEEL

Torque : 103 Nm (1,050 kgf-cm, 76 ft-lbf)

5. INSPECT AND ADJUST REAR WHEEL ALIGNMENT

Rear Wheel Alignment
