Removal
SUSPENSION: REAR NO. 2 SUSPENSION ARM: REMOVAL 1.
REMOVE REAR WHEEL
2.
REMOVE REAR NO. 2 SUSPENSION ARM
(a)

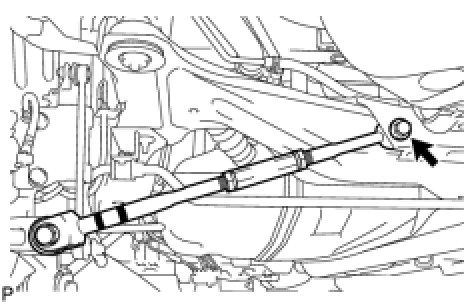

Remove the bolt, and disconnect the rear No. 2 suspension arm (inner side).
(b)

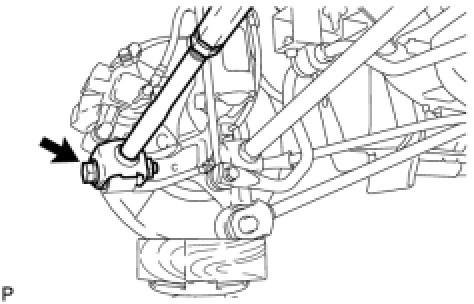

Remove the bolt, nut and the rear No. 2 suspension arm (outer side) from the rear axle carrier.
NOTICE: When removing the bolt, keep the nut from rotating.
