Installation





SUSPENSION: FRONT LOWER SUSPENSION ARM (except Models with 2AR-FE and Automatic Transaxle): INSTALLATION

HINT
* Use the same procedures for the RH side and the LH side.
* The procedures listed below are for the LH side.

1. INSTALL FRONT SUSPENSION LOWER NO. 1 ARM

(a) Install the front lower arm bushing stopper.

(b) Install the front suspension lower No. 1 arm to the front frame assembly with the 3 bolts and the nut, but do not tighten them yet.

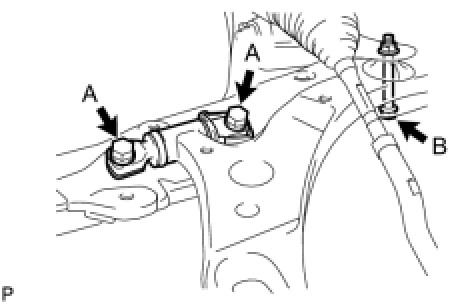

(c) Tighten the 3 bolts in numerical order shown in the illustration.





Torque : 200 Nm (2,040 kgf-cm, 148 ft-lbf) (bolt A)

Torque : 206 Nm (2,100 kgf-cm, 152 ft-lbf) (bolt B)

2. INSTALL ENGINE MOUNTING INSULATOR

(a) Install the engine mounting insulator with the 3 nuts.





Torque : 87 Nm (887 kgf-cm, 64 ft-lbf)

3. INSTALL ENGINE ASSEMBLY WITH TRANSAXLE

HINT
Refer to the instructions for installation of the engine assembly with transaxle Installation for 2AR-FE, Installation for 2GR-FE).
