Shift Solenoid Valve





U760E AUTOMATIC TRANSAXLE: SHIFT SOLENOID VALVE: INSPECTION

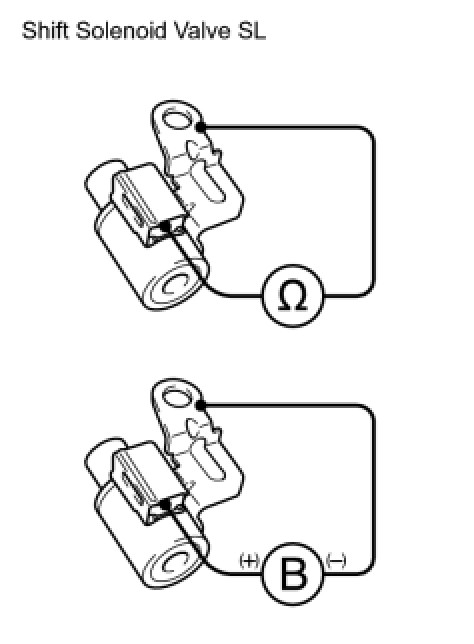

1. INSPECT SHIFT SOLENOID VALVE SL

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance





If the value is not as specified, replace the shift solenoid valve.

(b) Connect a positive (+) lead from the battery to terminal 2 and a negative (-) lead to terminal 1 of the solenoid valve connector, then check the movement of the shift solenoid valve.

OK:

The solenoid makes an operating noise.

If the result is not as specified, replace the shift solenoid valve.

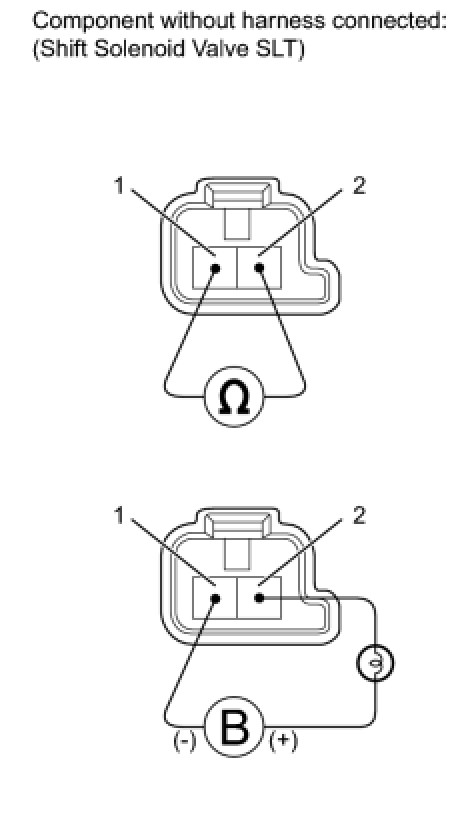

2. INSPECT SHIFT SOLENOID VALVE SLT

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance





If the value is not as specified, replace the shift solenoid valve.

(b) Connect a positive (+) lead with a 21 W bulb from the battery to terminal 2 and a negative (-) lead to terminal 1 of the solenoid valve connector, then check the movement of the shift solenoid valve.

OK:

The solenoid makes an operating noise.

If the result is not as specified, replace the shift solenoid valve.

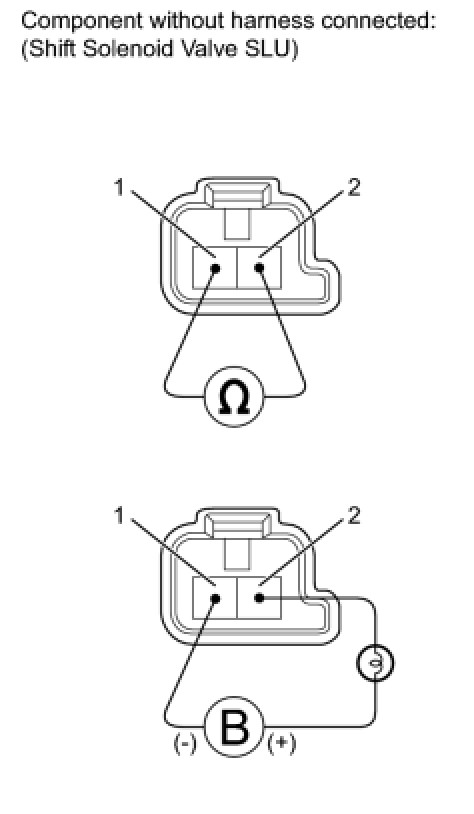

3. INSPECT SHIFT SOLENOID VALVE SLU

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance





If the value is not as specified, replace the shift solenoid valve.

(b) Connect a positive (+) lead with a 21 W bulb from the battery to terminal 2 and a negative (-) lead to terminal 1 of the solenoid valve connector, then check the movement of the shift solenoid valve.

OK:

The solenoid makes an operating noise.

If the result is not as specified, replace the shift solenoid valve.

4. INSPECT SHIFT SOLENOID VALVE SL1

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance





If the value is not as specified, replace the shift solenoid valve.

(b) Connect a positive (+) lead with a 21 W bulb from the battery to terminal 2 and a negative (-) lead to terminal 1 of the solenoid valve connector, then check the movement of the shift solenoid valve.

OK:

The solenoid makes an operating noise.

If the result is not as specified, replace the shift solenoid valve.

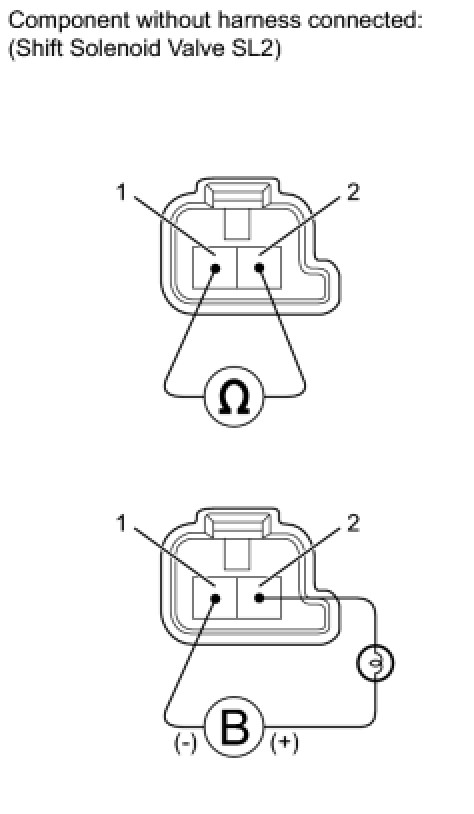

5. INSPECT SHIFT SOLENOID VALVE SL2

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance





If the value is not as specified, replace the shift solenoid valve.

(b) Connect a positive (+) lead with a 21 W bulb from the battery to terminal 2 and a negative (-) lead to terminal 1 of the solenoid valve connector, then check the movement of the shift solenoid valve.

OK:

The solenoid makes an operating noise.

If the result is not as specified, replace the shift solenoid valve.

6. INSPECT SHIFT SOLENOID VALVE SL3

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance





If the value is not as specified, replace the shift solenoid valve.

(b) Connect a positive (+) lead with a 21 W bulb from the battery to terminal 2 and a negative (-) lead to terminal 1 of the solenoid valve connector, then check the movement of the shift solenoid valve.

OK:

The solenoid makes an operating noise.

If the result is not as specified, replace the shift solenoid valve.

7. INSPECT SHIFT SOLENOID VALVE SL4

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance





If the value is not as specified, replace the shift solenoid valve.

(b) Connect a positive (+) lead with a 21 W bulb from the battery to terminal 2 and a negative (-) lead to terminal 1 of the solenoid valve connector, then check the movement of the shift solenoid valve.

OK:

The solenoid makes an operating noise.

If the result is not as specified, replace the shift solenoid valve.
