Differential Case
U760E AUTOMATIC TRANSAXLE: DIFFERENTIAL CASE: INSPECTION
1. INSPECT DIFFERENTIAL SIDE GEAR BACKLASH
(a) Hold the differential case in a vise between aluminum plates.
NOTICE:
Do not overtighten the vise.

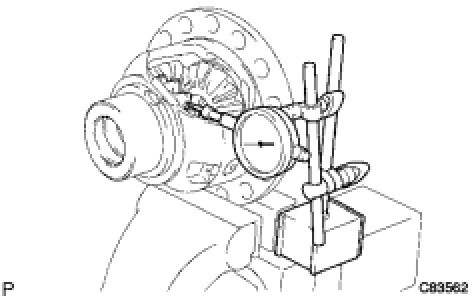

(b) Place a dial indicator on the tip of the side gear tooth at a right angle.
(c) Hold the pinion gear in the differential case and measure the backlash of the side gear.
Standard backlash:
0.05 to 0.2 mm (0.00197 to 0.00787 in.)
Thrust Washer Thickness
If the backlash is greater than the standard range, select another side gear thrust washer.
