Reassembly

PARKING BRAKE: PARKING BRAKE PEDAL: REASSEMBLY

1. INSTALL PARKING PEDAL PAD

(a) Install the parking pedal pad to the parking brake pedal assembly.





2. INSTALL PARKING BRAKE SWITCH ASSEMBLY

(a) Install the parking brake switch assembly with the screw.





3. INSTALL NO. 1 PARKING BRAKE CABLE ASSEMBLY

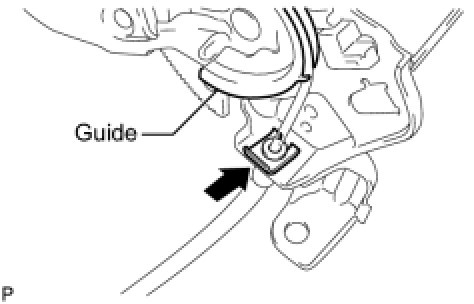

(a) Pass the No. 1 parking brake cable assembly through the pedal guide.





(b) Using a brass bar and a hammer, install the clip to the No. 1 parking brake cable assembly.

(c) Temporarily tighten the the lock nut and No. 1 wire adjusting nut.





NOTICE:
Fully tighten the lock nut and the No. 1 wire adjusting nut when adjusting the parking brake pedal travel.

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)

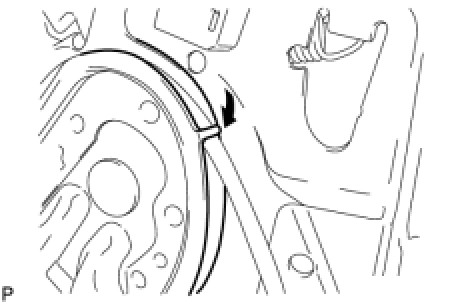

(d) Bend the parking brake pedal claw.
