Reassembly





PARKING BRAKE: PARKING BRAKE LEVER: REASSEMBLY

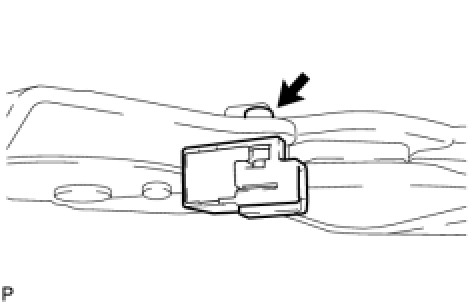

1. INSTALL PARKING BRAKE SWITCH ASSEMBLY

(a) Install the parking brake switch assembly with the screw.





2. INSTALL NO. 1 PARKING BRAKE CABLE ASSEMBLY

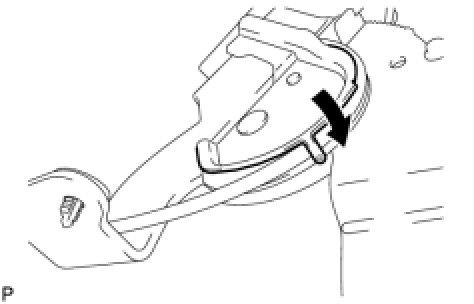

(a) Pass the No. 1 parking brake cable assembly through the parking brake lever sub-assembly.

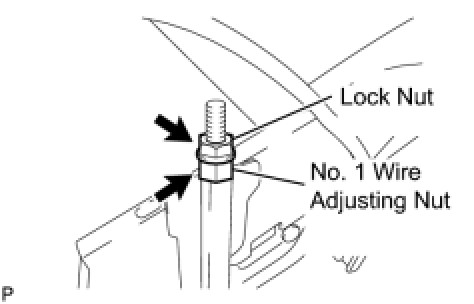

(b) Temporarily tighten the lock nut and the No. 1 wire adjusting nut.





NOTICE:
Fully tighten the lock nut when adjusting the parking brake lever travel.

Torque : 5.0 Nm (51 kgf-cm, 44 in-lbf)

(c) Bend the parking brake lever claw.
