Disassembly

PARKING BRAKE: PARKING BRAKE PEDAL: DISASSEMBLY

1. REMOVE NO. 1 PARKING BRAKE CABLE ASSEMBLY

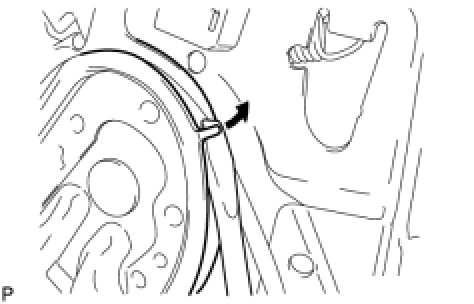

(a) Using a screwdriver, pull up the parking brake pedal claw.

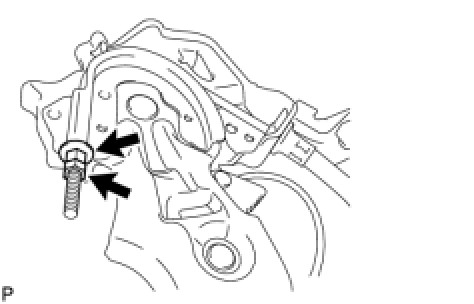

(b) Remove the lock nut and the No. 1 wire adjusting nut.

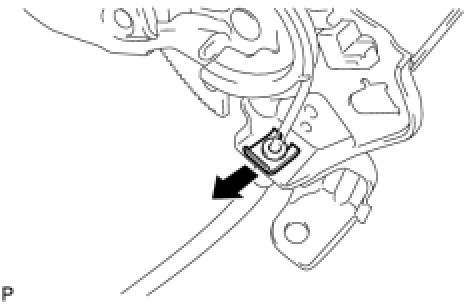

(c) Using needle nose pliers, remove the clip and the No. 1 parking brake cable from the parking brake pedal assembly.

2. REMOVE PARKING BRAKE SWITCH ASSEMBLY

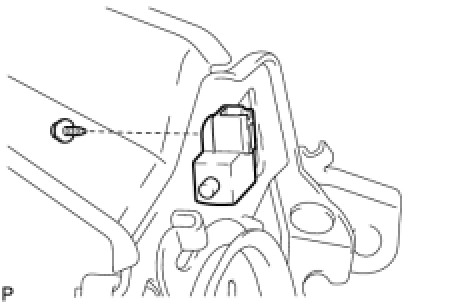

(a) Remove the screw and the parking brake switch assembly.

3. REMOVE PARKING PEDAL PAD

(a) Remove the parking pedal pad.
