Disassembly
PARKING BRAKE: PARKING BRAKE LEVER: DISASSEMBLY 1.
REMOVE NO. 1
PARKING BRAKE CABLE ASSEMBLY
(a)

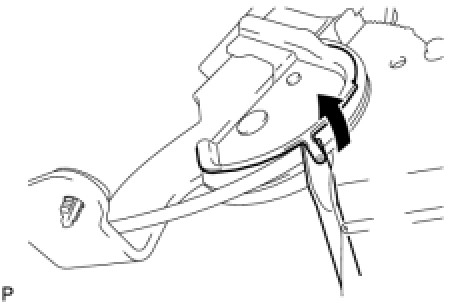

Using a screwdriver, pull up the
parking brake lever claw.
(b)
Remove the lock nut, the No. 1 wire adjusting nut, and the No. 1
parking brake cable assembly from the
parking brake lever sub-assembly.
2.
REMOVE PARKING BRAKE SWITCH ASSEMBLY
(a)
Remove the screw and the parking brake switch assembly.
