Removal

CLUTCH: CLUTCH MASTER CYLINDER: REMOVAL

1. PRECAUTION

Service Precautions.

2. REMOVE BRAKE BOOSTER ASSEMBLY

Removal.

3. REMOVE FRONT DOOR SCUFF PLATE LH Removal

4. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH Removal

5. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL LH Removal

6. REMOVE NO. 1 INSTRUMENT PANEL SUB-ASSEMBLY Removal

7. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL Removal

8. REMOVE INSTRUMENT CLUSTER FINISH PANEL Removal

9. REMOVE COMBINATION METER ASSEMBLY Removal

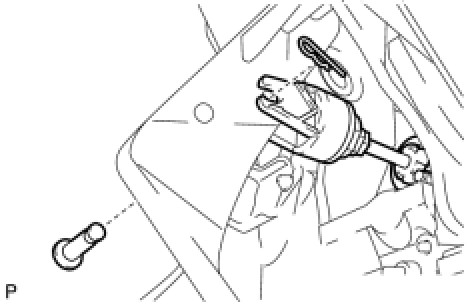

10. DISCONNECT CLUTCH MASTER CYLINDER PUSH ROD CLEVIS

(a) Remove the clip and pin, and disconnect the push rod clevis from the clutch pedal.





11. DISCONNECT CLUTCH RESERVOIR TUBE

(a) Using pliers, grip the claws of the clip and slide the clip to disconnect the tube from the clutch master cylinder.





HINT
Use a container to catch the fluid.

12. DISCONNECT CLUTCH LINE

(a) Using a union nut wrench (10 mm), disconnect the clutch line.





HINT
Use a container to catch the fluid.

13. REMOVE CLUTCH MASTER CYLINDER ASSEMBLY

(a) Remove the 2 nuts and clutch master cylinder.





(b) Remove the gasket from the clutch master cylinder assembly.
