U760E AUTOMATIC TRANSAXLE: TRANSMISSION WIRE: INSTALLATION

1. INSTALL TRANSMISSION WIRE

(a) Coat the O-ring with ATF.

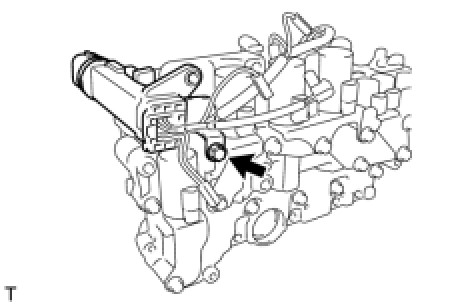

(b) Install the transmission wire and lock plate to the transmission valve body assembly with the bolt.





Torque : 11 Nm (112 kgf-cm, 8 ft-lbf)

(c) Install the transmission wire to the clamp and transmission valve body assembly with the bolt.





Torque : 11 Nm (112 kgf-cm, 8 ft-lbf)

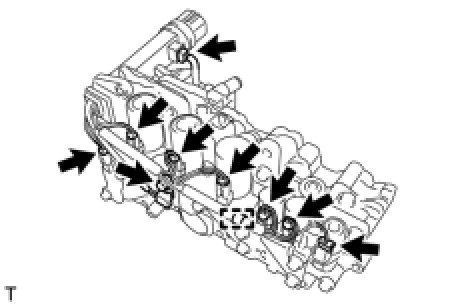

(d) Connect the 8 connectors.

2. INSTALL TRANSMISSION VALVE BODY ASSEMBLY Installation

3. INSTALL VALVE BODY OIL STRAINER ASSEMBLY Installation

4. INSTALL AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLY Installation

5. INSTALL AUTOMATIC TRANSAXLE ASSEMBLY

HINT
