Removal





U760E AUTOMATIC TRANSAXLE: TRANSMISSION CONTROL CABLE ASSEMBLY: REMOVAL

1. REMOVE INSTRUMENT PANEL REINFORCEMENT WITH AIR CONDITIONING UNIT

HINT
Removal

2. REMOVE CENTER AIRBAG SENSOR ASSEMBLY Removal

3. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY Removal

4. REMOVE INLET AIR CLEANER ASSEMBLY Removal

5. REMOVE AIR CLEANER CAP SUB-ASSEMBLY (for PZEV) Removal

6. REMOVE AIR CLEANER CAP SUB-ASSEMBLY (except PZEV) Removal

7. REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

8. REMOVE AIR CLEANER CASE SUB-ASSEMBLY Removal

9. REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY

(a) Disconnect the end of the transmission control cable assembly from the shift lock control unit.





(b) Disconnect the transmission control cable assembly from the transmission floor shift assembly while pushing the 2 claws of the floor shift cable.

(c) Remove the nut and transmission control cable from the control shaft lever.





(d) Remove the clip and disconnect the transmission control cable assembly from the No. 1 control cable bracket.

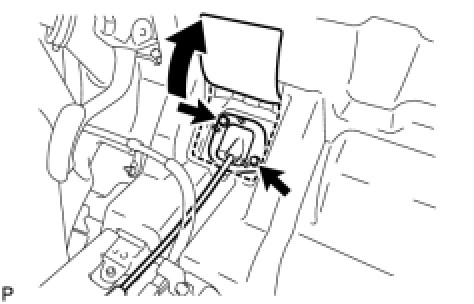

(e) Turn back the carpet.





(f) Remove the 2 bolts.

(g) Pull out the transmission control cable assembly from the body.
