Canada - Fuel System - Accelerator Pedal Damage Prevention: Overview






Bulletin
TSB3547

Issue Date
December 21, 2010

Market
Canada

Title
ACCELERATOR PEDAL BRACKET DAMAGED

Component
BODY COMPONENTS

Models
'05-'10 Avalon; '07-'11 Camry, Camry HV

INTRODUCTION:

When removing or installing the accelerator pedal on 2005 - 2010 Avalon or 2007 - 2011 Camry and Camry HV vehicles, the accelerator pedal mounting bracket may become damaged. Use the following procedure if this should occur.

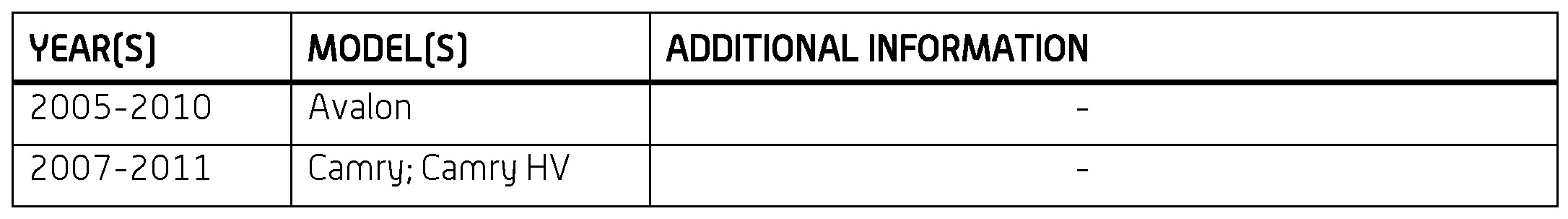

APPLICABILITY:

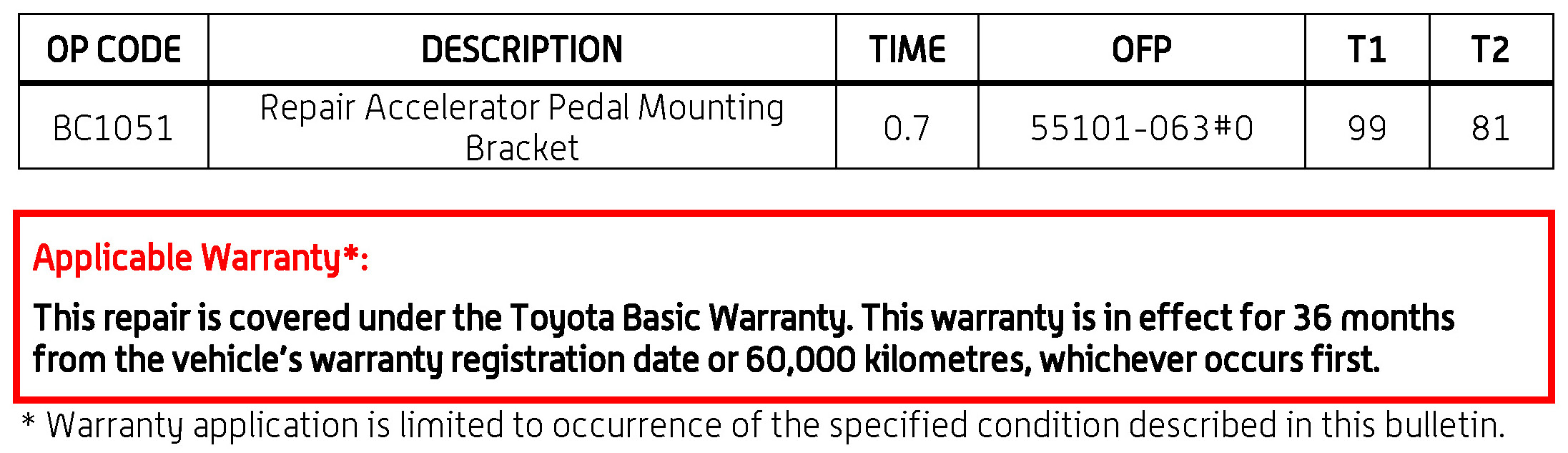

WARRANTY INFORMATION:

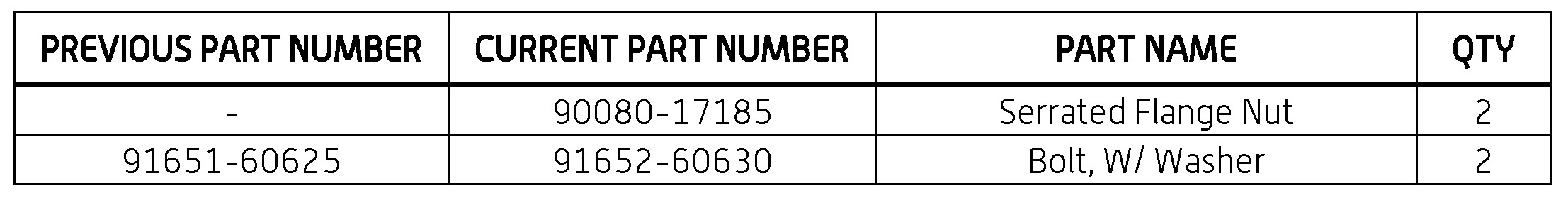

PARTS INFORMATION:

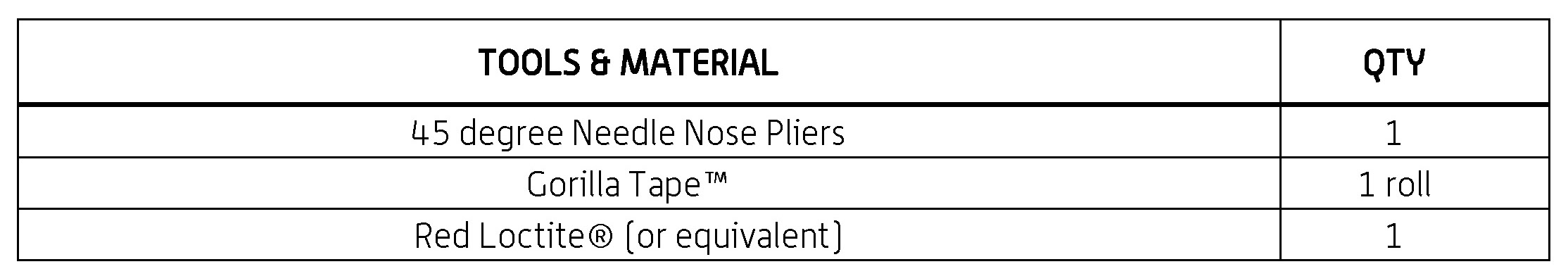

REQUIRED TOOLS & EQUIPMENT:

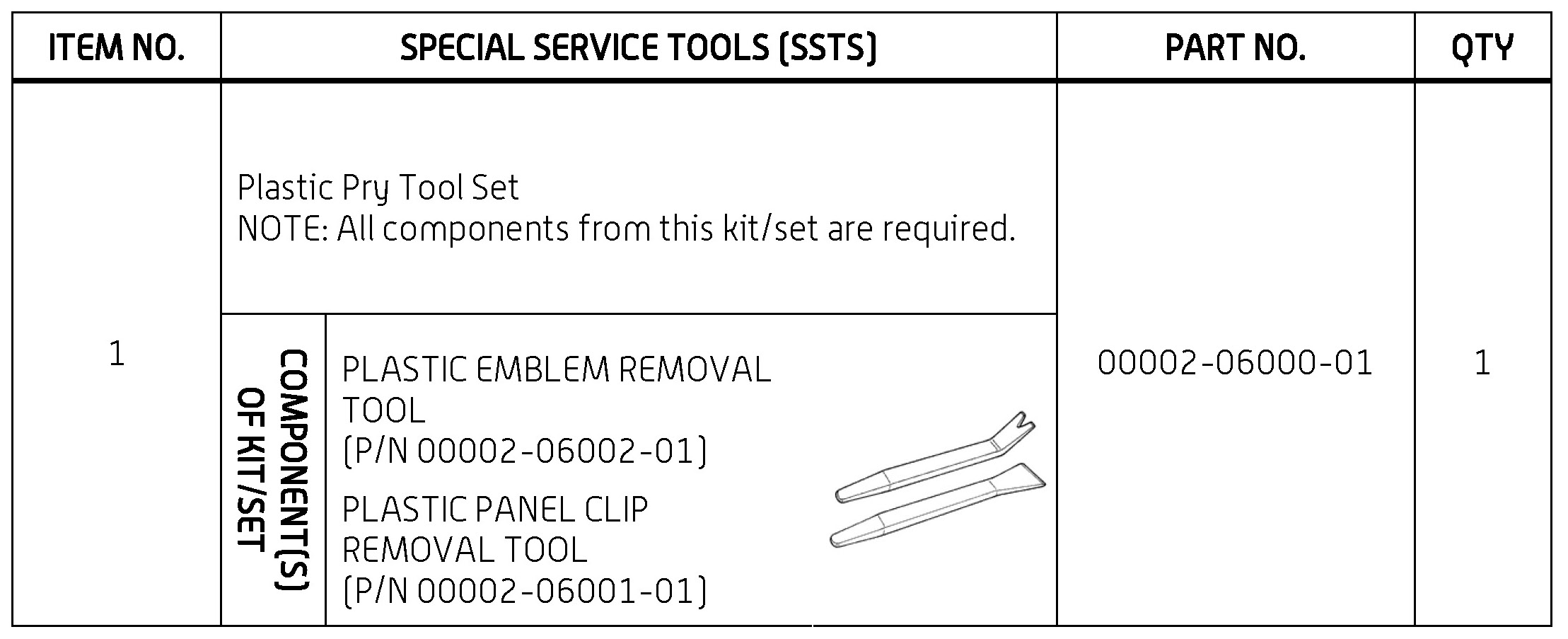

NOTE
Additional SSTs may be ordered by calling SPX/OTC at 1-800-933-8335.







OVERVIEW

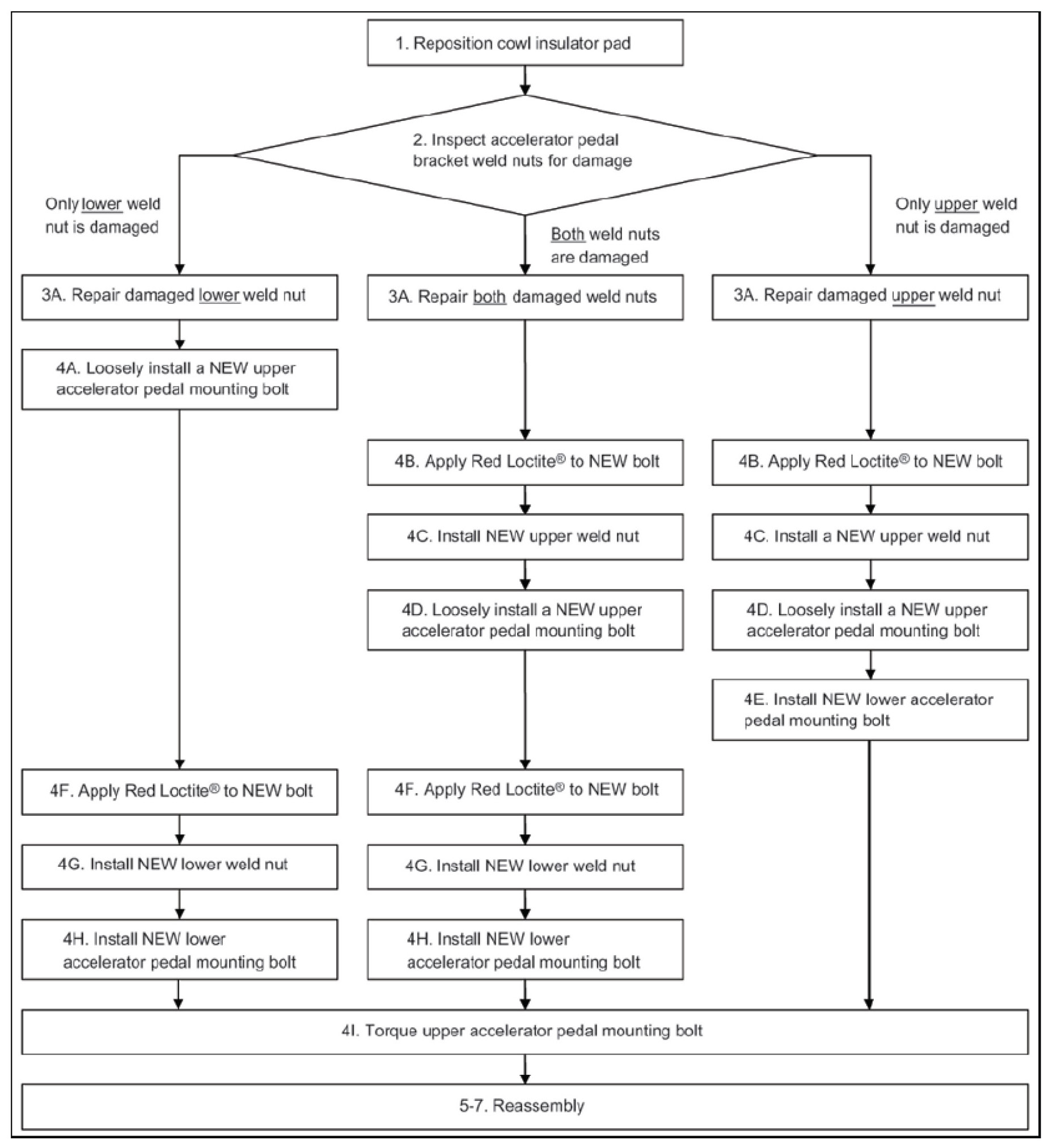

Utilize the repair process flowchart to identify the proper steps required to repair the condition.
Avalon Disassembly:
Camry and Camry HV Disassembly:
Repair (all models):
