Removal
2AR-FE EMISSION CONTROL: PCV VALVE: REMOVAL 1.
REMOVE INTAKE MANIFOLD
(a)
Remove the intake manifold
Removal.
2.
REMOVE VENTILATION VALVE SUB-ASSEMBLY

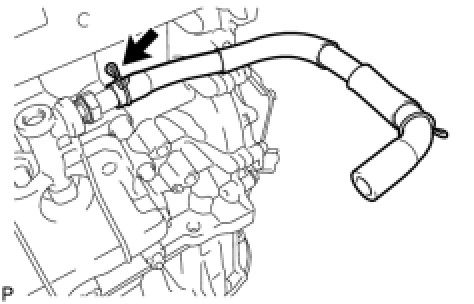

Disconnect the No. 2 ventilation hose from the ventilation valve.

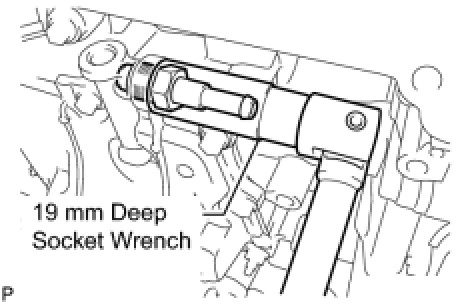

Using a 19 mm deep socket wrench, remove the ventilation valve.
