Installation





2AR-FE LUBRICATION: OIL PRESSURE SWITCH: INSTALLATION

1. INSTALL ENGINE OIL PRESSURE SWITCH ASSEMBLY

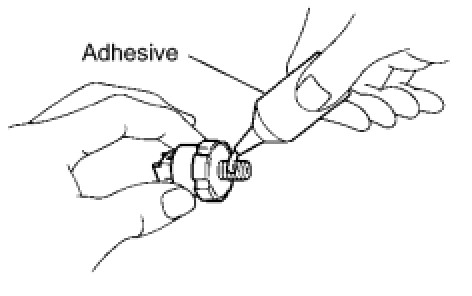

(a) Apply adhesive to 2 or 3 threads of the oil pressure switch.





Adhesive:

Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent.

NOTICE:
Do not let adhesive adhere to the oil hole.

(b) Using a 24 mm deep socket wrench, install the oil pressure switch.





Torque : 15 Nm (153 kgf-cm, 11 ft-lbf)

NOTICE:
Do not start the engine within 1 hour of installation.

(c) Connect the oil pressure switch connector.

2. INSPECT FOR OIL LEAK Replacement
