Removal

2AR-FE ENGINE MECHANICAL: REAR CRANKSHAFT OIL SEAL: REMOVAL

1. REMOVE ENGINE AND TRANSAXLE

(a) Remove the engine and transaxle Removal.

2. REMOVE MANUAL TRANSAXLE ASSEMBLY (for Manual Transaxle)

(a) Remove the manual transaxle assembly Removal.

3. REMOVE CLUTCH RELEASE WITH BEARING CYLINDER ASSEMBLY (for Manual Transaxle)

HINT
Removal.

4. REMOVE AUTOMATIC TRANSAXLE ASSEMBLY (for Automatic Transaxle)

(a) Remove the automatic transaxle assembly Removal.

5. REMOVE CLUTCH COVER ASSEMBLY (for Manual Transaxle) Removal

6. REMOVE CLUTCH DISC ASSEMBLY (for Manual Transaxle)

7. REMOVE FLYWHEEL SUB-ASSEMBLY (for Manual Transaxle)

(a) Using SST, hold the crankshaft pulley.





SST : 09213-54015

SST : 09330-00021

SST : 91551-80650

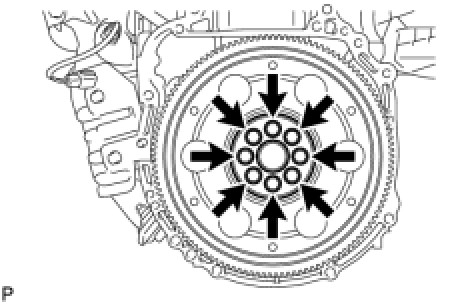

(b) Remove the 8 bolts and flywheel.





8. REMOVE DRIVE PLATE AND RING GEAR SUB-ASSEMBLY (for Automatic Transaxle)

(a) Using SST, hold the crankshaft pulley.





SST : 09213-54015

SST : 09330-00021

SST : 91551-80650

(b) Remove the 8 bolts, front drive plate spacer, drive plate and ring gear sub-assembly, and rear drive plate spacer.





9. REMOVE REAR ENGINE OIL SEAL

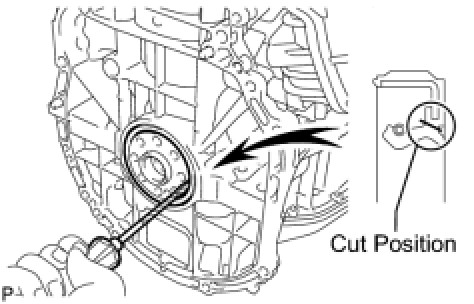

(a) Using a knife, cut off the lip of the oil seal.





(b) Using a screwdriver, pry out the oil seal.

HINT
Tape the screwdriver tip before use.

NOTICE:
Do not damage the surface of the oil seal press fit hole or the crankshaft.
