Installation





2AR-FE LUBRICATION: ENGINE OIL COOLER: INSTALLATION

1. INSTALL ENGINE OIL COOLER ASSEMBLY

(a) Clean the oil cooler contact surface on the cooler mounting.

(b) Apply a light coat of engine oil to 3 new gaskets.

(c) Install the 3 new gaskets to the engine oil cooler assembly.

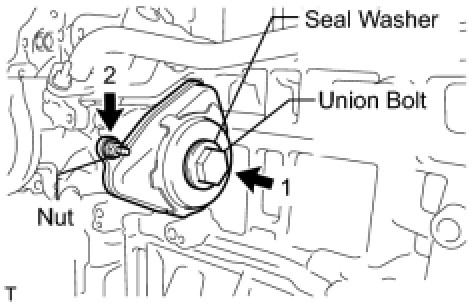

(d) Temporarily install the engine oil cooler assembly with the union bolt, nut and a new seal washer.

(e) Tighten the bolt and nut in several steps, in the sequence shown in the illustration.





Union Bolt - Torque : 60 Nm (612 kgf-cm, 44 ft-lbf)

Nut - Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

2. INSTALL EXHAUST MANIFOLD ASSEMBLY

HINT
Installation

3. ADD ENGINE OIL Replacement

4. ADD ENGINE COOLANT Testing and Inspection

5. CHECK ENGINE OIL LEVEL Testing and Inspection

6. INSPECT FOR OIL LEAK
