2AR-FE LUBRICATION: ENGINE OIL COOLER: REMOVAL 1.
REMOVE
EXHAUST MANIFOLD ASSEMBLY
HINT Removal 2.
DRAIN ENGINE OIL
Replacement 3.
DRAIN ENGINE COOLANT
Testing and Inspection 4.
REMOVE ENGINE OIL COOLER ASSEMBLY
(a)

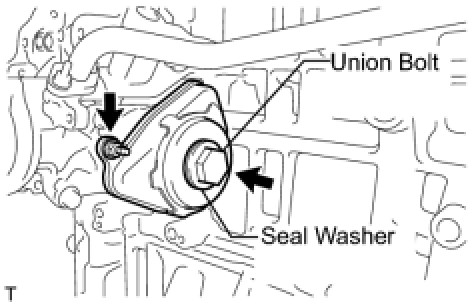

Remove the nut, union bolt, seal washer and engine oil cooler assembly.
(b)
Remove the 3 gaskets from the engine oil cooler assembly.
