Horn Relay: Testing and Inspection
HORN: HORN RELAY: INSPECTION 1.
INSPECT FUSE (HORN)
(a)
Check the resistance of the HORN fuse.
Standard: Below 1 Ohms 2.
INSPECT
HORN RELAY (a)

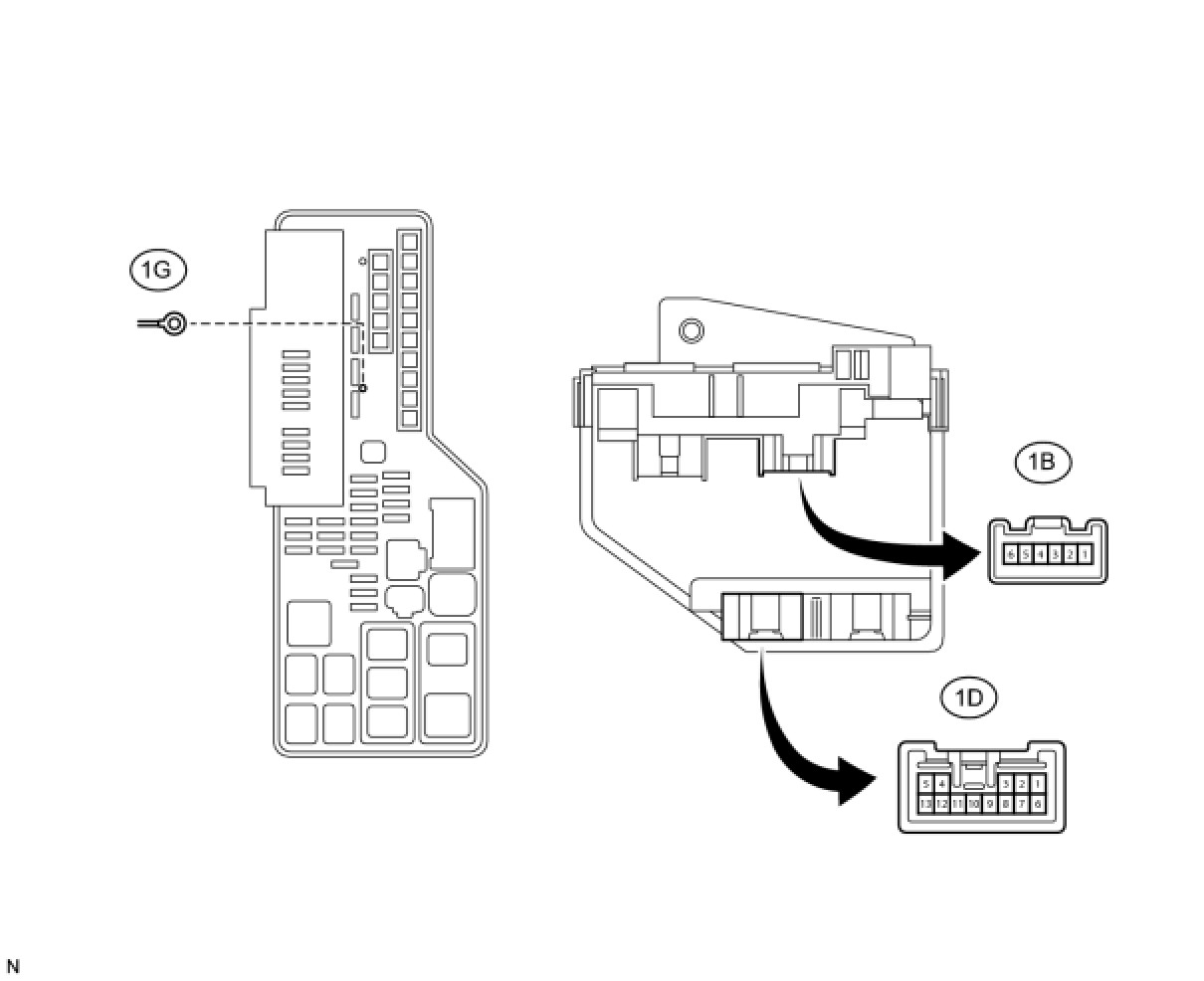

Remove the engine room R/B and J/B (
horn relay).
(b)
Measure the resistance according to the value(s) in the table below.
Standard resistance:
