Removal

LIGHTING: STOP LIGHT SWITCH: REMOVAL

1. REMOVE FRONT DOOR SCUFF PLATE LH Removal

2. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH Removal

3. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL LH Removal

4. REMOVE NO. 1 INSTRUMENT PANEL SUB-ASSEMBLY Removal

5. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL (w/o Smart Key System) Removal

6. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL (w/ Smart Key System) Removal

7. REMOVE INSTRUMENT CLUSTER FINISH PANEL NO.1 Removal

8. REMOVE COMBINATION METER ASSEMBLY Removal

9. REMOVE STOP LIGHT SWITCH ASSEMBLY

(a) Disconnect the stop light switch assembly connector from the stop light switch assembly.

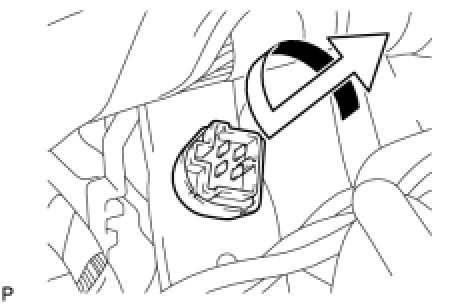

(b) Turn the stop light switch assembly counterclockwise and remove the stop light switch assembly.
