Removal





SEAT BELT: FRONT SEAT INNER BELT ASSEMBLY: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (for Manual Seat)

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

2. REMOVE FRONT SEAT HEADREST ASSEMBLY

3. REMOVE SEAT TRACK COVER (for Manual Seat) Removal

4. REMOVE INNER SEAT TRACK BRACKET COVER (for Manual Seat) Removal

5. REMOVE FRONT SEAT ASSEMBLY (for Manual Seat) Removal

6. REMOVE SEAT TRACK COVER (for Power Seat) Removal

7. REMOVE INNER SEAT TRACK BRACKET COVER (for Power Seat) Removal

8. REMOVE FRONT SEAT ASSEMBLY (for Power Seat) Removal

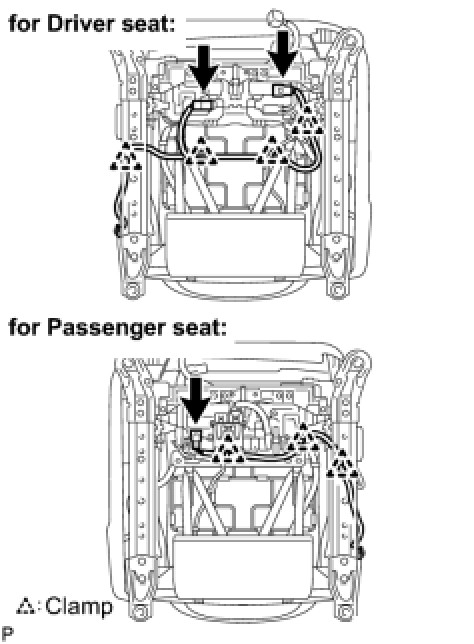

9. REMOVE FRONT SEAT INNER BELT ASSEMBLY (for Manual Seat)

(a) for Driver seat:





(1) Disconnect the connectors and disengage the 4 clamps.

(b) for Passenger seat:

(1) Disconnect the connector and disengage the 3 clamps.

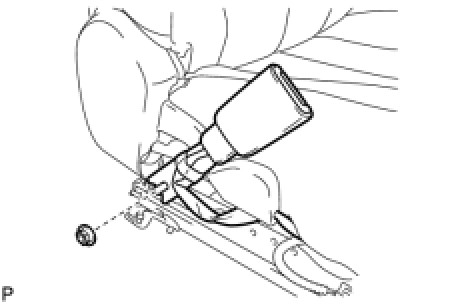

(c) Remove the nut and front seat inner belt assembly.

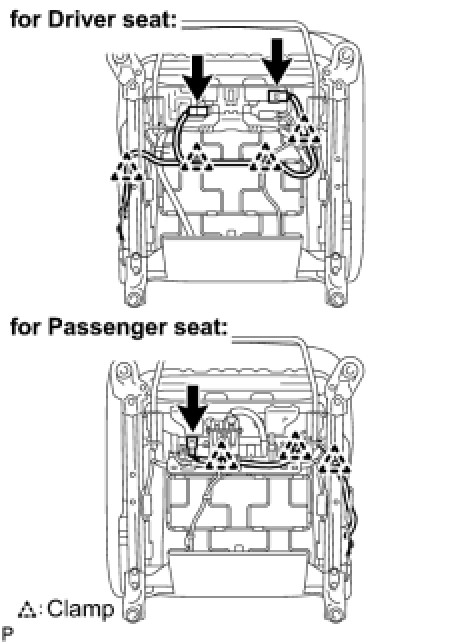

10. REMOVE FRONT SEAT INNER BELT ASSEMBLY (for Power Seat)

(a) for Driver seat:





(1) Disconnect the connectors and disengage the 4 clamps.

(b) for Passenger seat:

(1) Disconnect the connector and disengage the 3 clamps.

(c) Remove the nut and front seat inner belt assembly.
