Removal

WIPER AND WASHER: FRONT WIPER MOTOR: REMOVAL

1. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH

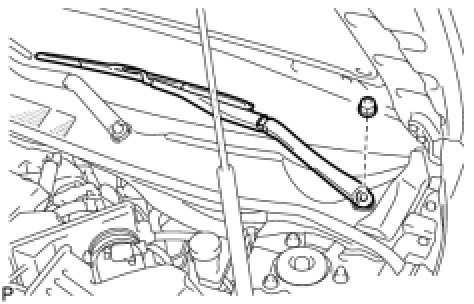

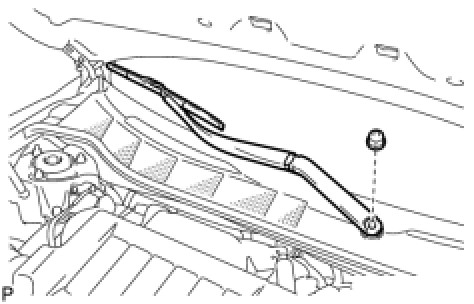

(a) Remove the nut and the front wiper arm and blade assembly LH.

2. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH

(a) Remove the nut and the front wiper arm and blade assembly RH.

3. REMOVE FRONT FENDER TO COWL SIDE SEAL LH

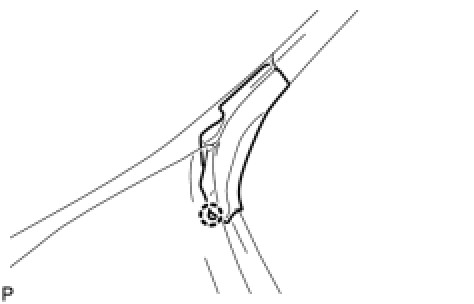

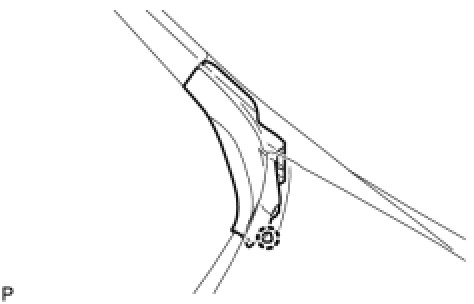

(a) Disengage the claw and remove the front fender to cowl side seal LH.

4. REMOVE FRONT FENDER TO COWL SIDE SEAL RH

(a) Disengage the claw and remove the front fender to cowl side seal RH.

5. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

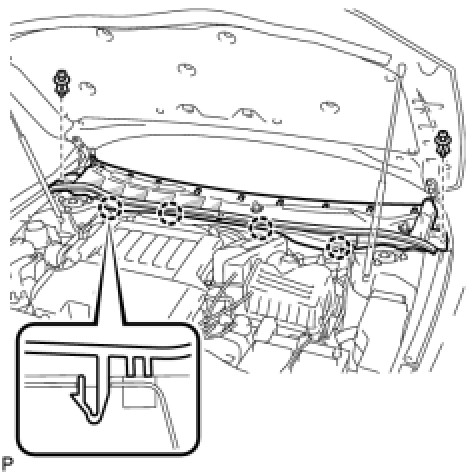

(a) Remove the 2 clips.

(b) Disengage the 4 claws and remove the cowl top ventilator louver sub-assembly.

6. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

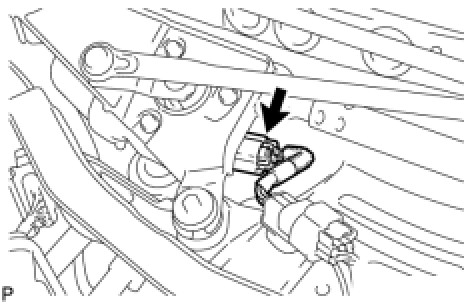

(a) Disconnect the connector.

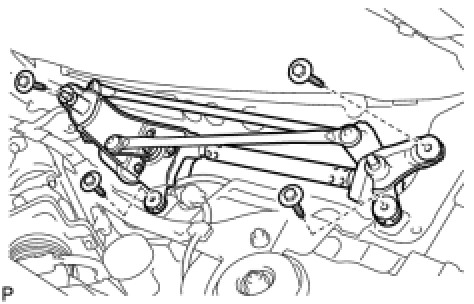

(b) Remove the 4 bolts and the windshield wiper motor and link assembly.

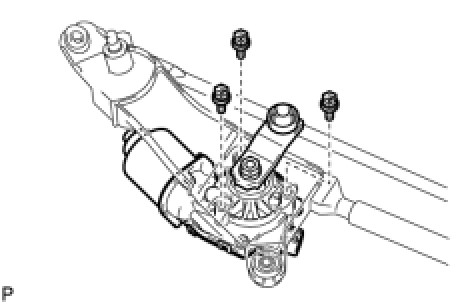

7. REMOVE WINDSHIELD WIPER MOTOR ASSEMBLY

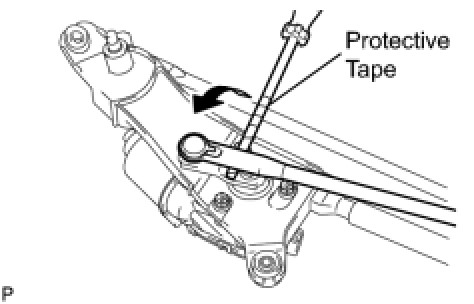

(a) Using a screwdriver, separate the No. 2 windshield wiper link rod from the crank arm pivot of the front wiper motor assembly as shown in the illustration.

HINT
Tape the screwdriver tip before use.

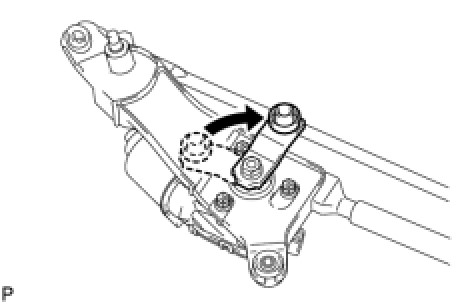

(b) Move the crank arm in the direction indicated by the arrow.
